Base Reinforcement Using Pet Biaxial Geogrid For Road Construction Earthwork

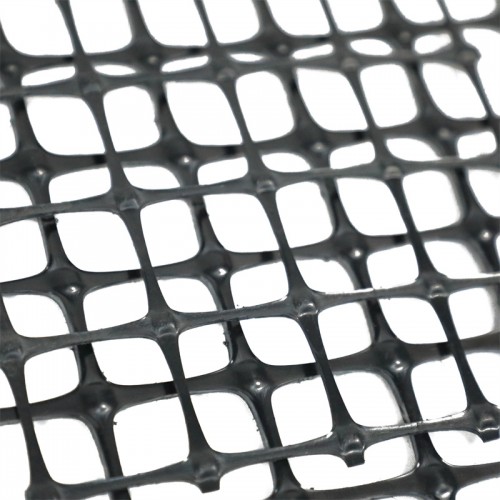

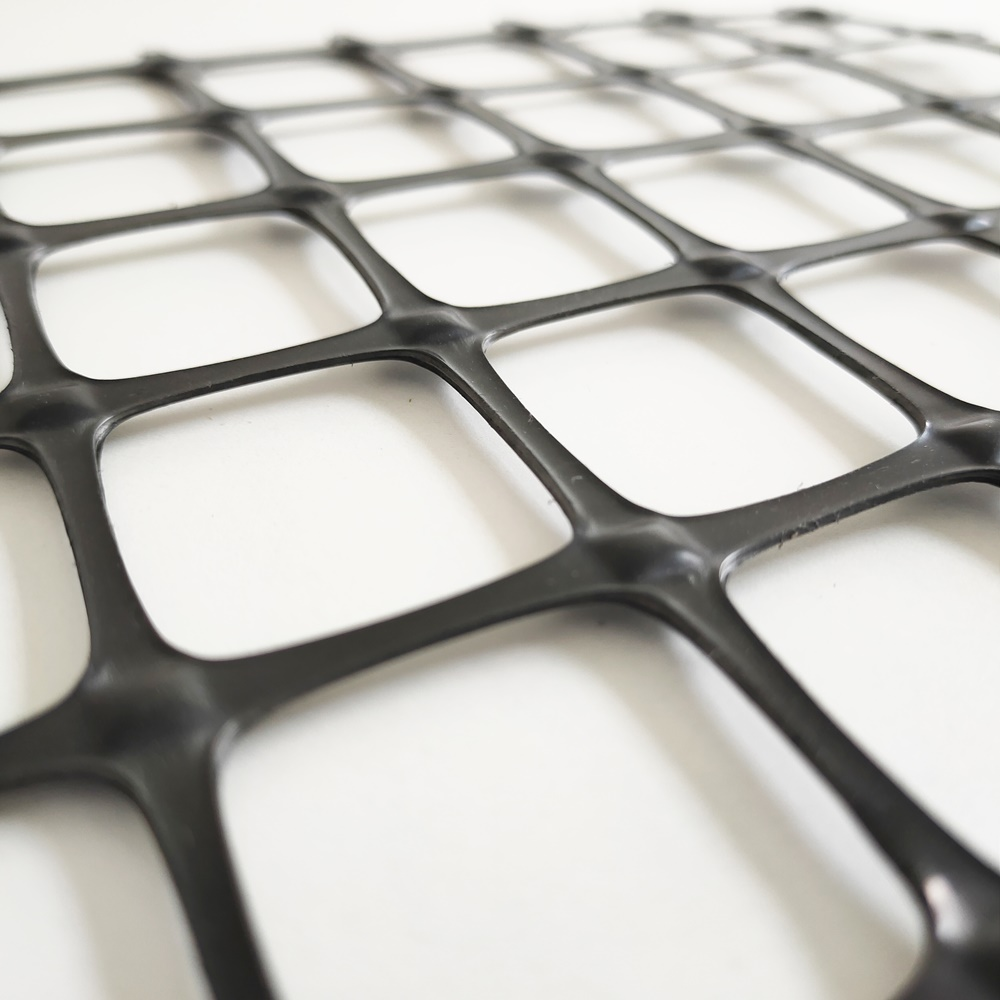

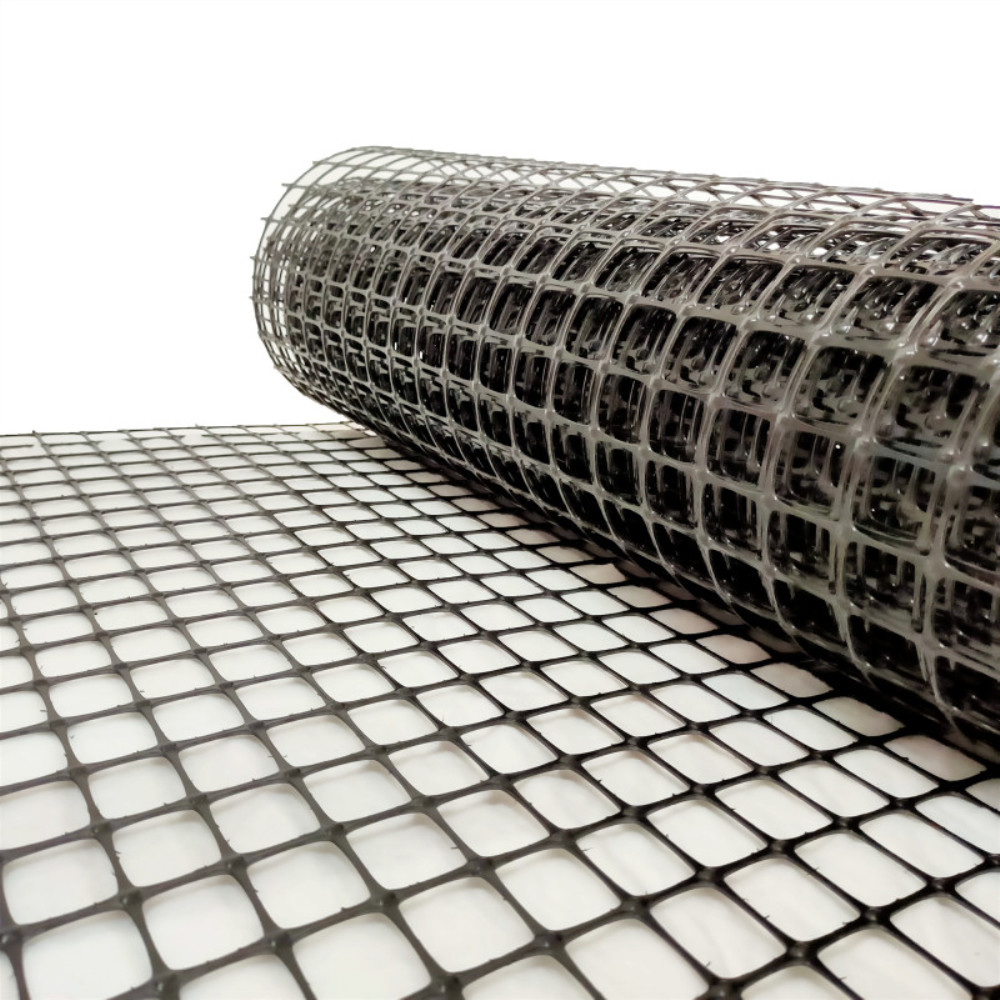

Geogrid is made by polypropylene(PP) as the raw material,It is produced through the process of extruding, punching, heating, longitudinal and transverse stretching.It can be used to enhancement of permanent bearable soft including highway.

Description:

base reinforcement using pet biaxial geogrid for road construction earthwork
•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation

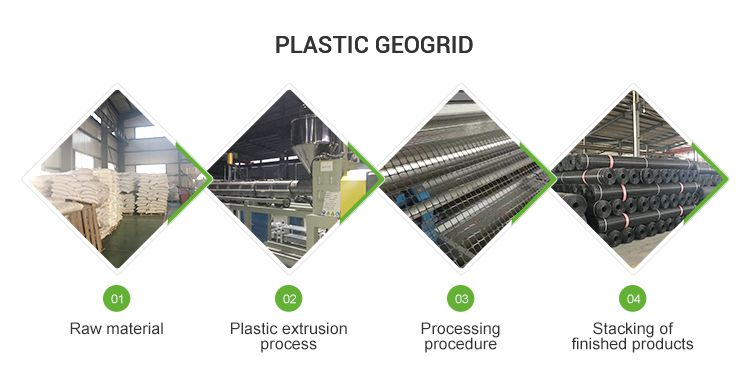

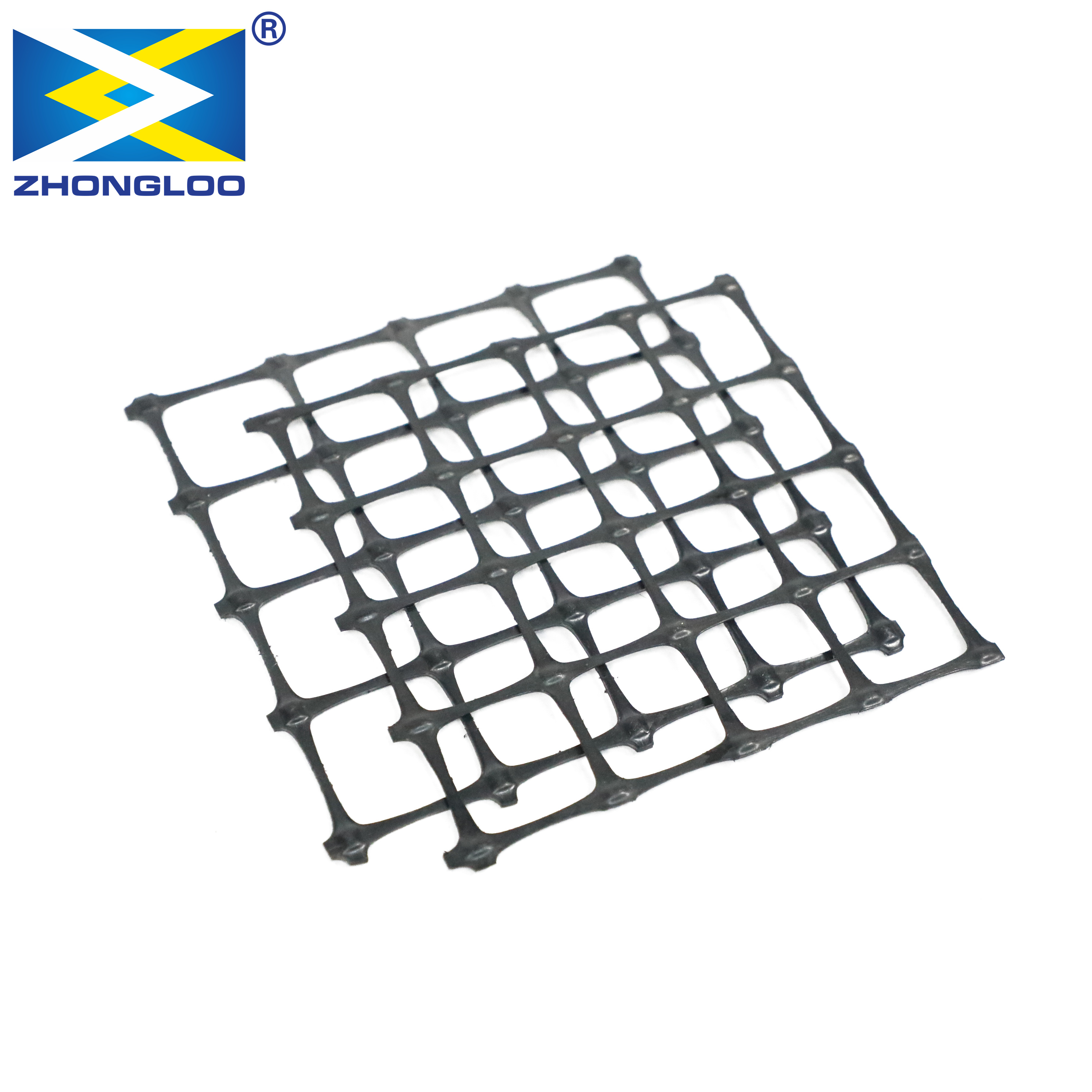

Geogrid is made by polypropylene(PP) as the raw material,It is produced through the process of extruding, punching, heating, longitudinal and transverse stretching.It can be used to enhancement of permanent bearable soft including highway.
 Biaxial Plastic Geogrid Technical Parameter (GB standard)
Item
Specification

TGSG1515
TGSG2020
TGSG2525
TGSG3030
TGSG3535
TGSG4040
TGSG4545
TGSG5050
Vertical and horizontal tensile strength≥(KN/M)
15
20
25
30
35
40
45
50
Tensile strength at 2% elongation≥(KN/M)
5
7
9
10.5
12
14
16
17.5
Tensile strength at 5% elongation≥(KN/M)
7
14
17
21
24
28
32
35
Tensile strength at 5% elongation≥(KN/M)

15

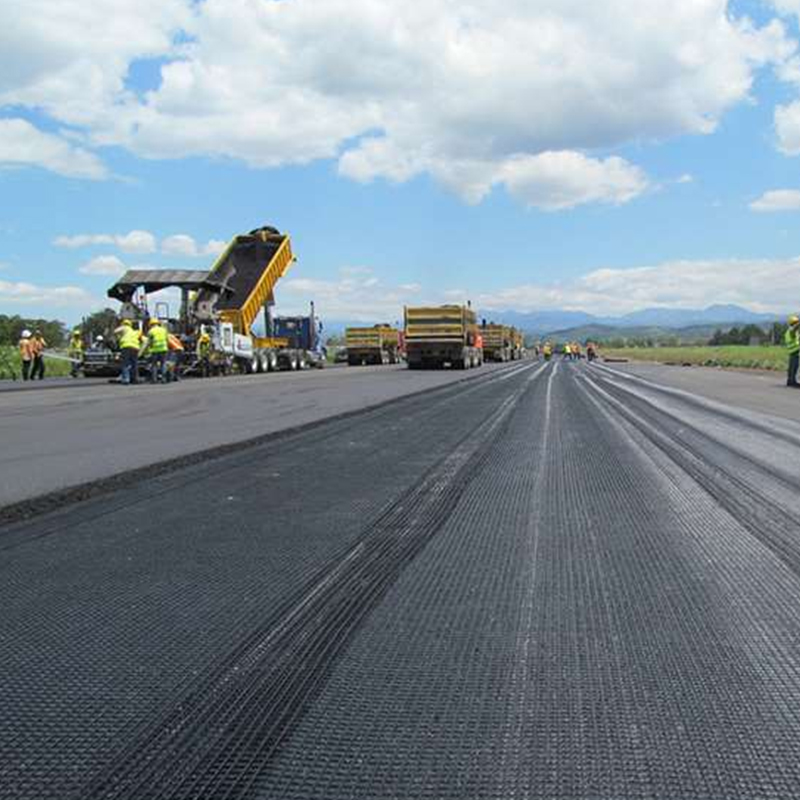

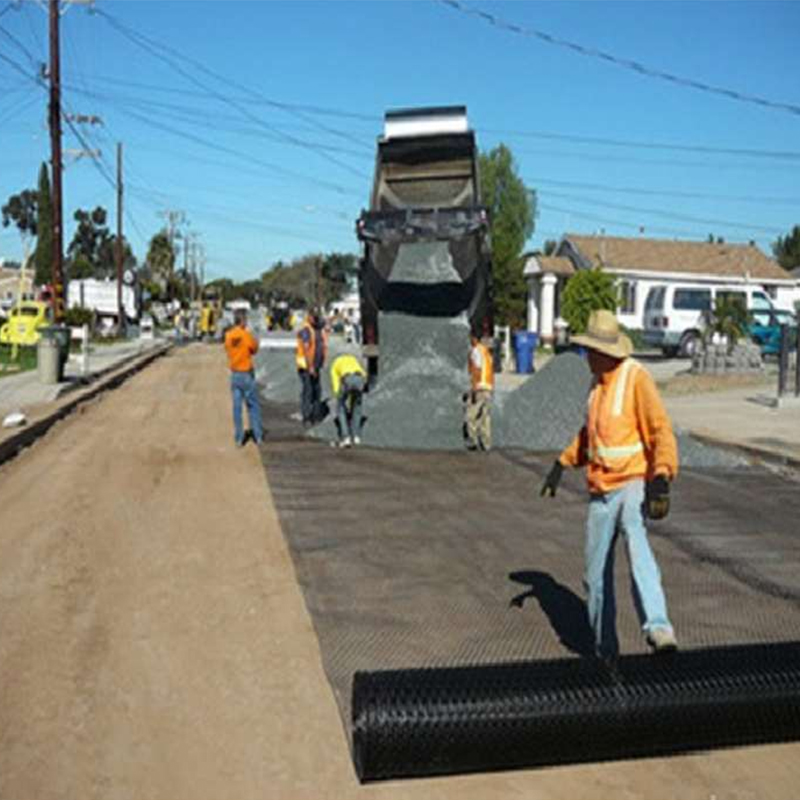

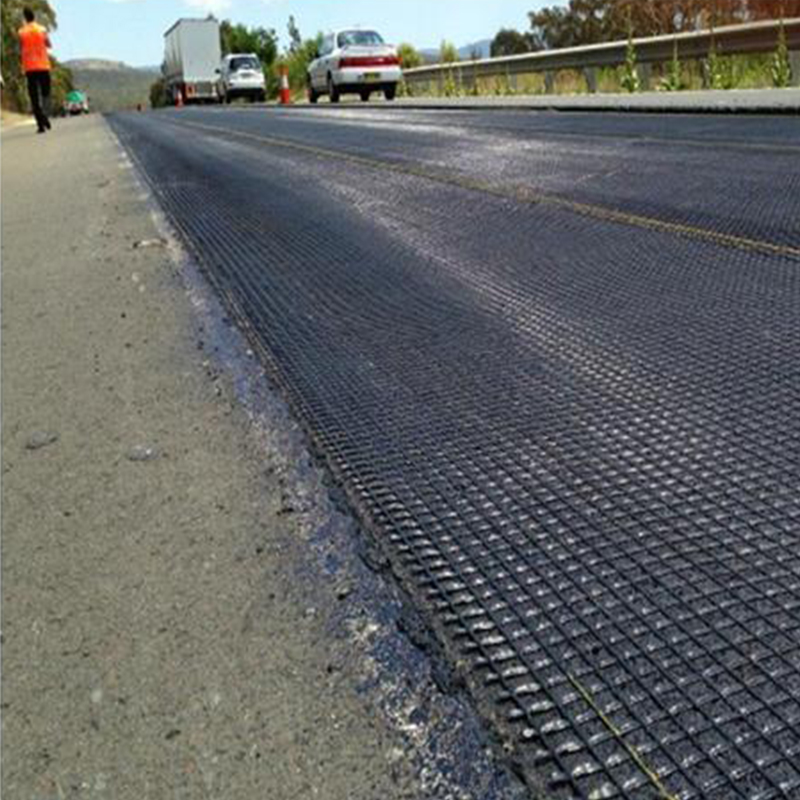

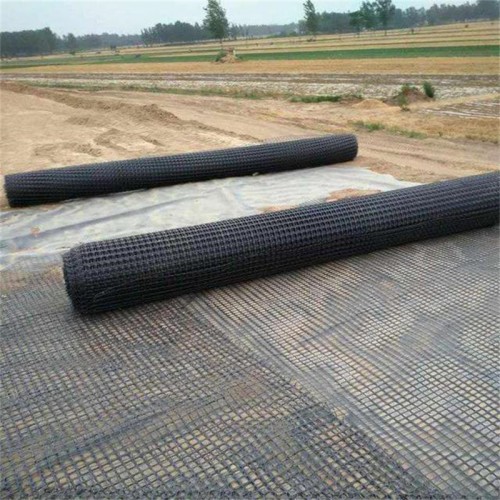

Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei, Anhui Province, with are gistered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome.

Q:How long is the delivery time?
A:General within 3-7 days after receiving the deposit.

Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
