1mm 1.5mm 2mm Hdpe Fish Farm Pond Dam Liner Geomembrane

1)anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
2) High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.

3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.

Description:

1.Product Description

high density polyethylene(HDPE) smooth liner ,made of virgin resin by special production ,has even and smooth surface on both sides.It is especially designed for flexible geomembrane liner.





2.Product Feature

Good physical and mechanic performance

High tearing resistance, strong deformation adaptability

Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

Good adaptability to high and low temperature, non-toxicity, long service life





3.Product Parameter



Thickness 0.75 1.0 1.25 1.50 2.00 2.50 3.00
Density g/m2 ≥0.94 ≥0.94 ≥0.94 ≥0.94 ≥0.94 ≥0.94 ≥0.94
Tensile yield strength (N/mm) ≥11 ≥15 ≥18 ≥22 ≥29 ≥37 ≥44
Tensile breaking strength (N/mm) ≥20 ≥27 ≥33 ≥40 ≥53 ≥67 ≥80
Bongation at yield(%) ≥12 ≥12 ≥12 ≥12 ≥12 ≥12 ≥12
Elongation at break(%) ≥700 ≥700 ≥700 ≥700 ≥700 ≥700 ≥700
Tear resistance(N) ≥93 ≥125 ≥160 ≥190 ≥250 ≥315 ≥375
Puncture strength(N) ≥240 ≥320 ≥400 ≥480 ≥640 ≥800 ≥960
Tensile load stress cracking ≥300 ≥300 ≥300 ≥300 ≥300 ≥300 ≥300
Carbon black content(%) 2.0-3.0 2.0-3.0 2.0-3.0 2.0-3.0 2.0-3.0 2.0-3.0 2.0-3.0







4.Project Cases

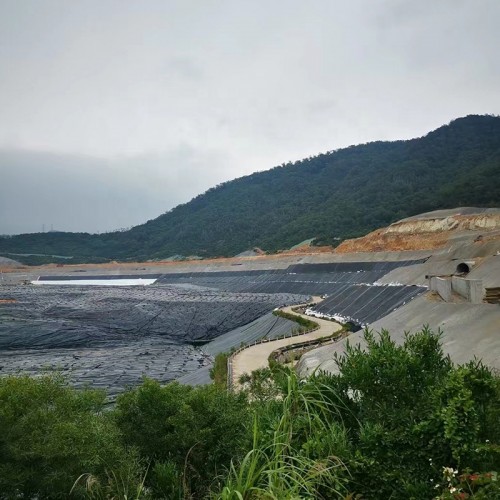

1. Environmental protection and sanitation like waste landfill, sewage treatment, industrial waste, etc.

2. Water conservancy such as anti-seepage, leakage blockage and reinforcement of river, etc.

3. Municipal projects such as underground project, subway, planting roof, etc.

4. Landscape garden such as artificial river, bottom lining, damp-proof, etc.

5. Mine industry such as bottom lining and anti-seepage
