Building Material Geosynthetics PP Polypropylene Polyester Filament Spunbond Needle Punched Nonwoven Geotextile

Polypropylene filament geotextile adopts advanced spinning equipment, the monofilament fineness can reach above 11dex, the strength can reach above 3.5gd, the mesh is evenly laid without cloud spots, the vertical and horizontal strength and elongation are consistent, and the product performance is more uniform and stable.

Description:

Product Description

Polyester Filament Needle Punched Geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with highter strength fabric . so Nonwoven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.

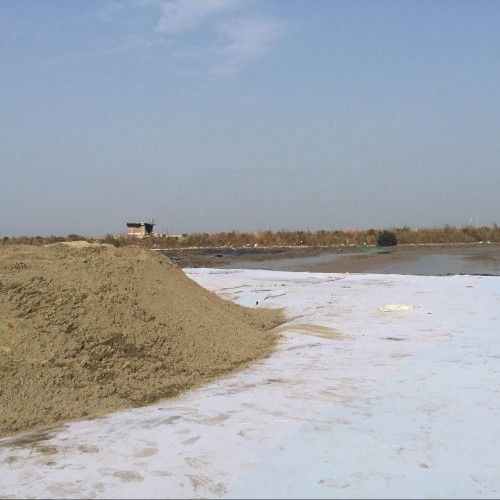

Polyester Filament Needle Punched Geotextile sed to separate,filter,reinforce, protect or drain.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.





Product Parameters



Non-woven Geotextile Technical Parameter (GB standard)
Item unit Standard Specification
100 150 200 250 300 350 400 450
Thickness≥ mm 0.9 1.3 1.7 2.1 2.4 2.7 3 3.3
width Deciation % 0.5
Breaking strength KN/M 2.50 4.50 6.50 8.00 9.50 11.00 12.50 14.00
Breaking Elongation % 25-100
Weight Tolerance g/m² -8 -8 -8 -8 -7 -7 -7 -7
CBR Tear Strength≥ KN 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4
Tear Strength≥ KN 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38
Vertical Permeability N/5cm Kx(10﹣¹-10﹣³)
EOS 090 mm 0.07-0.2

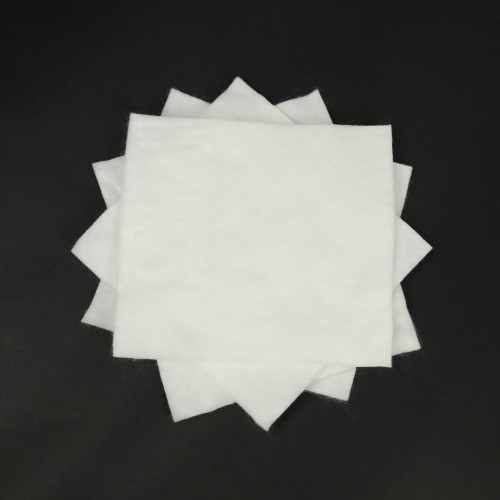

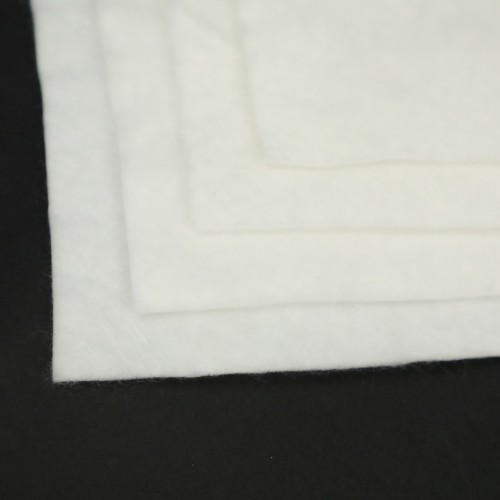

Detailed Photos

未标题-3
