GCL Geosynthetic Clay Liners For Dam And Landfills

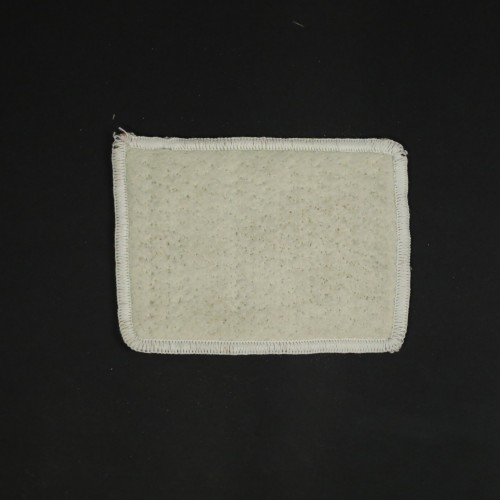

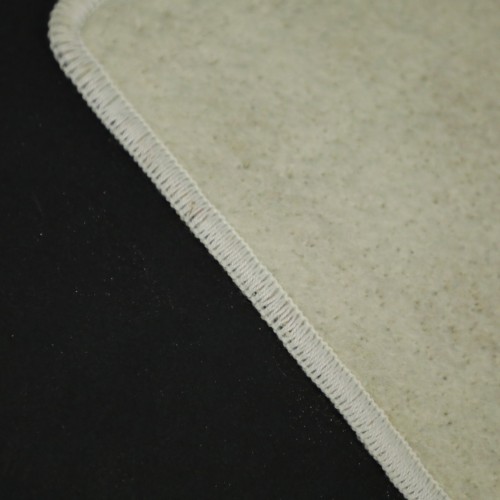

Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemicals yard.

Description:

Product Description

Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden, pool, oil depot and chemicals yard.



Technical parameter

Projects/ Technical data

Specifications

GCL-NP

GCL-OF

GCL-AH

Weight per unit area(g/m2)

≥4000g/m2

Bentonie swell index(ml/2g)

≥24

≥24

≥24

Ethylene blue absorption(g/100g)

≥30

≥30

≥30

Tensile strength (N/100mm)

≥600

≥700

≥600

Racking strength(N/100mm)
(for nonwovwn and woven fabric)

≥40

≥40

-

Racking strength(N/100mm)
(for HDPE films and nonwoven fabric)



≥30

-

Permeability(m/s)

≤5.0x110^(-11)

≤5.0x110^(-11)



anti-static water pressure

0.4Mpa,1h,

not seepage

0.6Mpa,1h,not seepage

filtration loss (ml)

≤18

≤18

≤18

Bentonite durability (ml/2g)

≥20

≥20





Features:

1, It has excellent waterproof and impermeable properties, impermeable hydrostatic pressure up to 1.0MPa or more, permeability 5 × 10-11cm / s, unit area bentonite quality 5kg / ㎡, bentonite is a natural inorganic materials, will not be aging reaction, good durability; and will not cause any adverse impact on the environment is an environmentally friendly material;

2, has all the characteristics of geotextile materials, such as separation, reinforcement, protection, filtration, etc., construction is easy and not limited by the temperature of the construction environment, 0 ℃ below can also be constructed. construction simply lay the GCL waterproof blanket flat on the ground, vertical or oblique construction, with nails and washers to fix it, and lap as required;

3, easy to repair; even after the end of waterproofing (seepage) construction, such as accidental damage to the waterproof layer, as long as the broken part of the simple repair, you can regain the original waterproof performance. 4, relatively high performance to price ratio, very wide range of uses.
