HDPE Geocell Cellular Confinement System

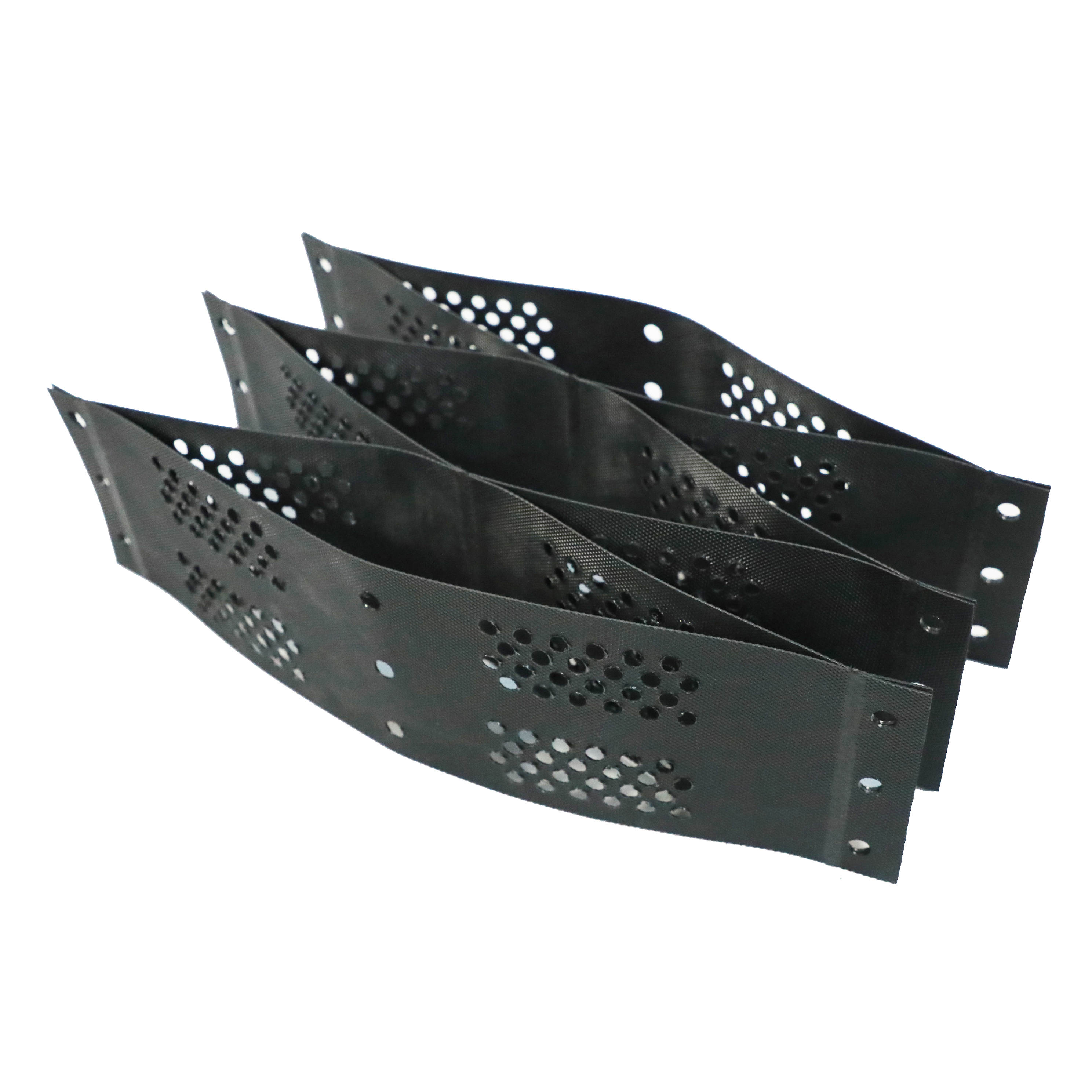

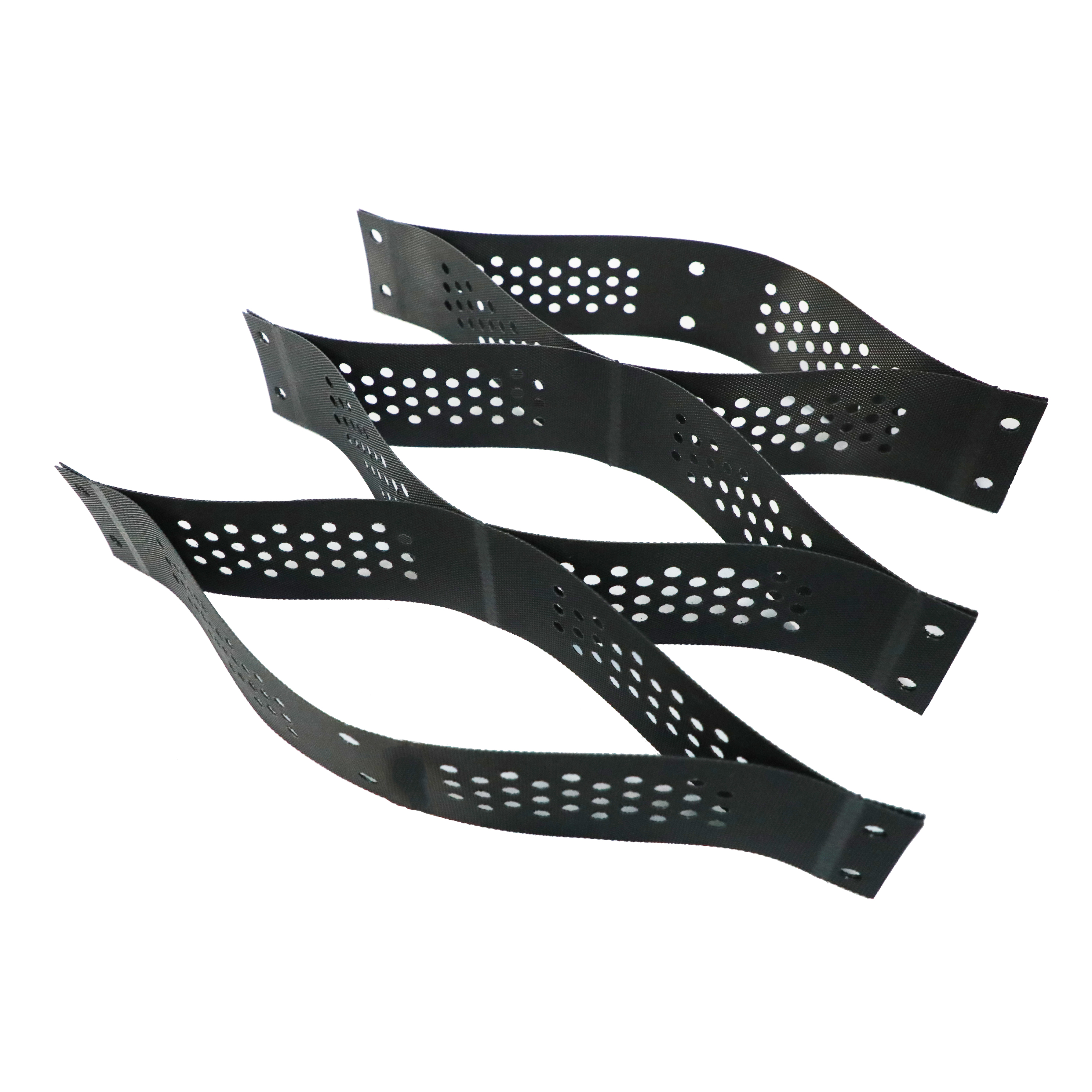

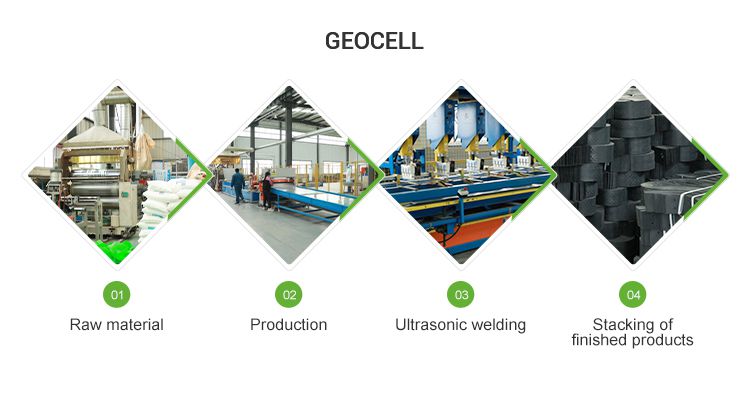

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

Description:

HDPE Geocell Cellular Confinement System

Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.

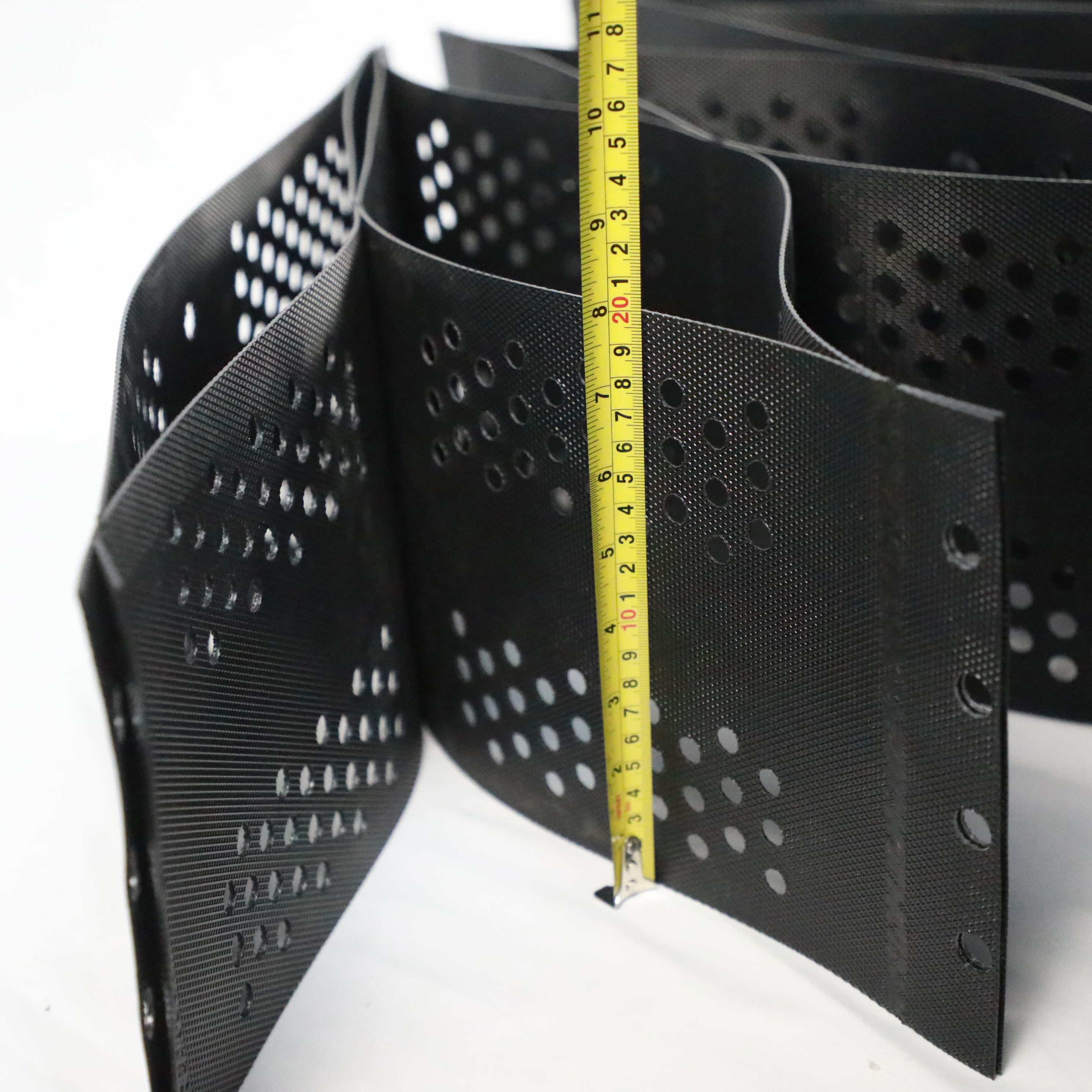

Size is relatively stable, change the height and welding distance can meet the needs of different projects.

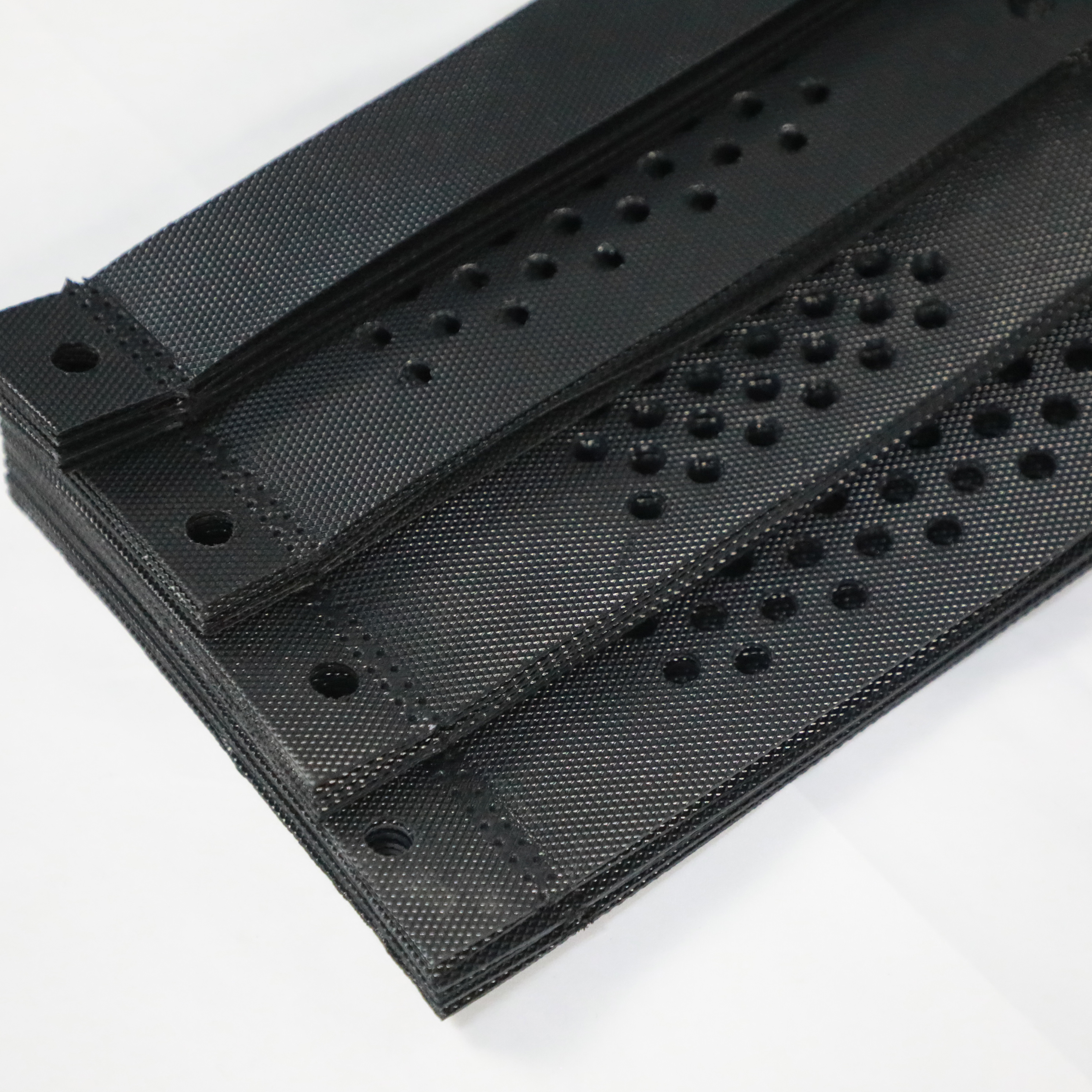

Retractile, easy to transport.
Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.

Plastic HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.

Geocell
item	PP	PE
tensile strength of Strip ≥（Mpa）	23	20
Tensile strength of weld ≥（N/cm）	100	100
Tensile strength of cell edge ≥（N/cm）	200	200
Intermediate tensile strength of cell sheet ≥（N/cm）	120	120

Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) for steep faces, walls and irregular topography

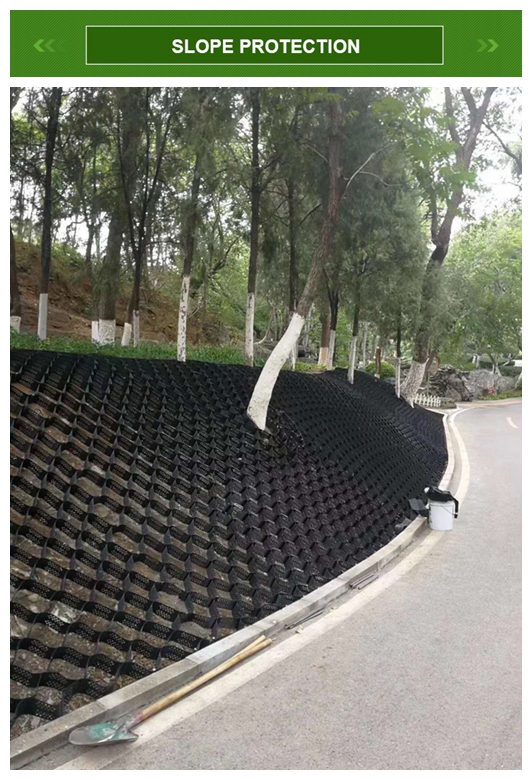

Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing

Gruound Stabilisation

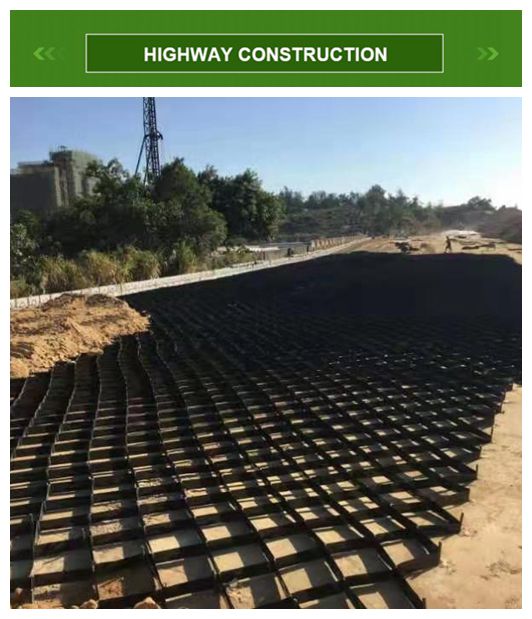

Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

Load Support

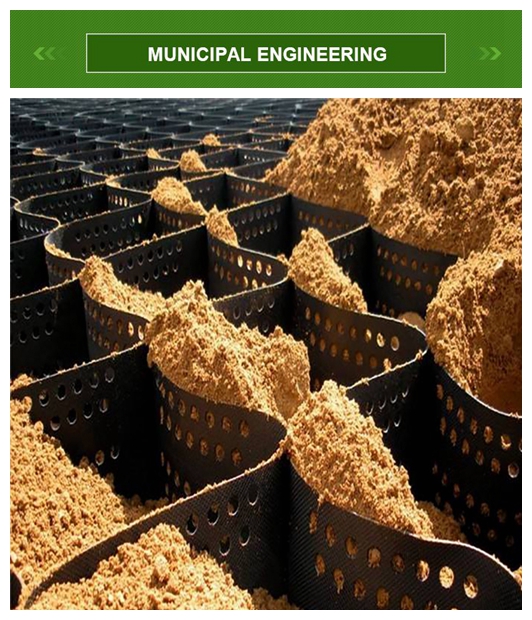

Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.

Anhui Zhonglu Engineering Materials Co.,ltd, with a registered capital of 52 million, is located in Hefei China. It is a high-tech enterprise integrating the production, development and sales of new geosynthetic, such as geocell, geotextile, geomembrane, geogrid, warp knitted composite, geonet, waterproof and dranage board.Zhonglu Geosynthetics, as leading manufacturer of geosynthetics materials, enables our company to provide customers excellent delivery time and high quality products.

 Q：Can you send samples? A：Yes, we are very happy to provide you with free samples to check the quality of our products.

Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei, Anhui Province, with are gistered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.

Q：Can you produce the product according to customers' requirements?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome.

Q：How long is the delivery time?
A:General within 3-7 days after receiving the deposit.
Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.


TEL:+86-18130028453

WeChat:+86-18130028453

WHATSAPP:+86-18130028453

E-mail: Mary@zhongloo.com
