HDPE Geocell Driveway For Road And Slope Protection HDPE Geocell Gravel Grid Geocells
Why choose Us?
1, Quality stable, long-term warranty
2, Shipment in time
3, Quickly response
4, More than 7 years experience
5, Installation guide
6, One-stop sourcing
Description:
HDPE Geocell driveway for road and slope protection HDPE geocell gravel grid Geocells
Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site.
The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
1) Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3)High carrying capacity and good dynamic performance and high erosion ability
4)The geometry size can be changed to meet different needs of the project, such as height and welding distance.
5)Retractable and small loading volume, convenient joint, speed construction.
6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together.
2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
Why Geocell In roads , railways , sewers and slope applications , etc . during construction , sometimes we encountersoft and / or weak soils . The traditional way is to fill with expensive materials , which could be costlyand time consuming . However , there is an effective alternative method , by using geocell directly on the subgrade .geocell is made of ultrasonically-welded high density polythelene ( HDPE ) and can beexpanded to form honeycomb structure . Cells are then filled with readily available granular materialsand compacte.The Geocell solution means to challenge soil stability problems in lots of applications therougn the high-strength network of interconnected cells .
How Geocell Works when infilled with compacted materials , it creates a newcomposite entity that possesses enhanced mechanical andgeotechnical properties
When the soil contained within a Geocell is subjected to pressure , it causes lateral stresses on perimeter cell walls.
When the soil contained within a Geocell is subjected to pressure , it causes lateral stresses on perimeter cell walls.
The 3D zone of confinement reduces the lateral movement of soil particles while vertical loading on the contained infill results in high lateral stress and resistance on the cell-soil interface . These increase the shear strength of the confined soil . which :
Creates a stiff mattress or slab to distribute the load over a wider area. Preduces punching of sofl soil.
Incrcascs shear resistance and bcaring capacity
decreases deformation
Confinement from adjacent cells provides additional resistance against the loaded cell through passiveresistance , while lateral expansion of the infill is restricted by high hoop strength . Compaction ismaintained by Geocell resulting in long term reinforcement
Creates a stiff mattress or slab to distribute the load over a wider area. Preduces punching of sofl soil.
Incrcascs shear resistance and bcaring capacity
decreases deformation
Confinement from adjacent cells provides additional resistance against the loaded cell through passiveresistance , while lateral expansion of the infill is restricted by high hoop strength . Compaction ismaintained by Geocell resulting in long term reinforcement
.Applications:HDPE paving plastic gravel stabilizer geocell

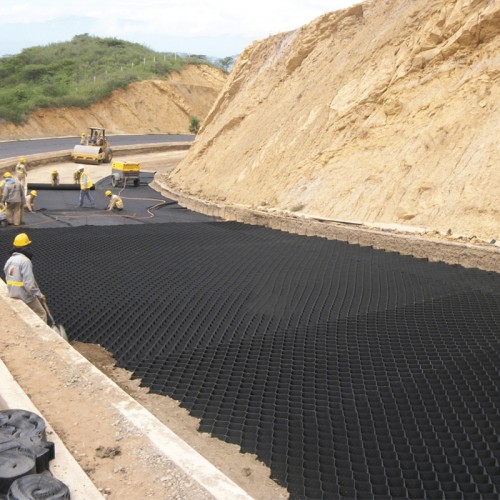

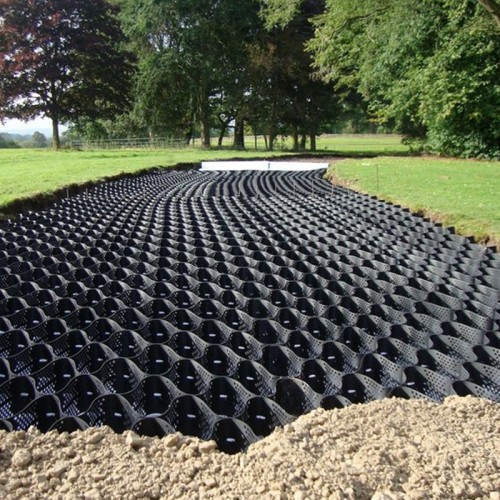

1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .

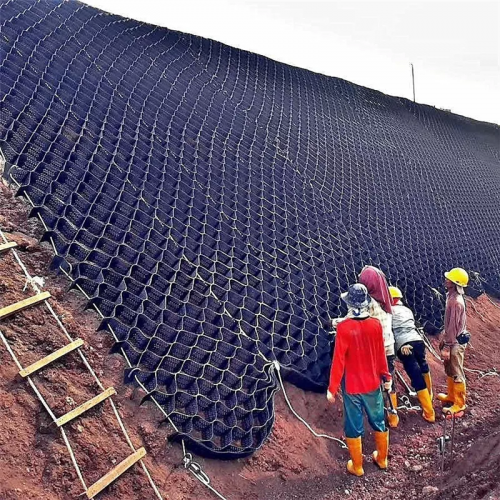

3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,good performance and greatly reduce the project cost .
Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., LtdAngela :86-18095658976
