HDPE Geocell Ground Enhancement Cellular System Geo Cell
Geocell is a kind of using high density polyethylene (HDPE) and ultrasonic technology joint welded together 3d mesh structure, ensure the consistency of slope erosion resistance, more durable performance, flexible packaging and transportation has a wide range of cell size and depth, to meet your projects and civil engineering application requirements.
Description:
Product introduction

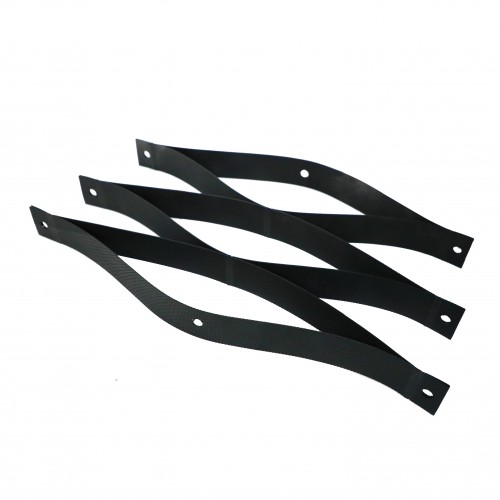

Geocell is high strength thermoplastic sheet material, formed a net cell struction after being welded. It can stretch and shrink freely, can be folded when in transportation, stretch to allow soil, sand or concrete to be filled in when in use. As a result, it can form a structure, which has high strength in side limit force and stiffness. It can be used as under layer to improve soft soil bearing ability, can also be layered in slope for protection and support structure.
Technical parameter：
| Geocell | ||||
| item | PP | PE | ||
| tensile strength of Strip ≥（Mpa） | 23 | 20 | ||
| Tensile strength of weld ≥（N/cm） | 100 | 100 | ||
| Tensile strength of cell edge ≥（N/cm） | 200 | 200 | ||
| Intermediate tensile strength of cell sheet ≥（N/cm） | 120 | 120 | ||
Feature
1. It is used to stabilize road and railway subgrades.
2. It is used for the management of embankments and shallow water channels that bear the load.
3. Hybrid retaining wall used to prevent landslides and load gravity.
4. When encountering soft ground, the use of geocells can greatly reduce the labor intensity of construction, reduce the thickness of the roadbed, and the construction speed is fast, the performance is good, and the project cost is greatly reduced.
