HDPE Geocell Horse Paddock Grid Honeycomb Soil Stabilizer

Features:
1) Light material, resistant to wear, stable in chemical properties, anti-aging, resistant to acids and alkalis, applicable to different soil and desert and other geological conditions.
2)High limit on lateral direction, anti-skidding, anti-deformation, effectively enhance the supporting ability and scattered load function of roadbed.
3)High carrying capacity and good dynamic performance and high erosion ability
4)The geometry size can be changed to meet different needs of the project, such as height and welding distance. 5)Retractable and small loading volume, convenient joint, speed construction.
6)Local material can be used during construction, reduce the construction cost, easy to be transported after folding together

Description:

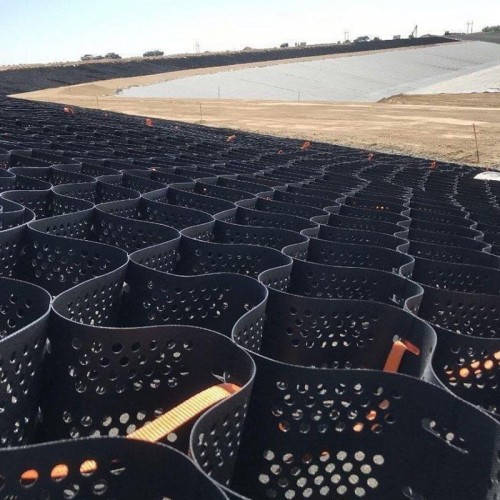

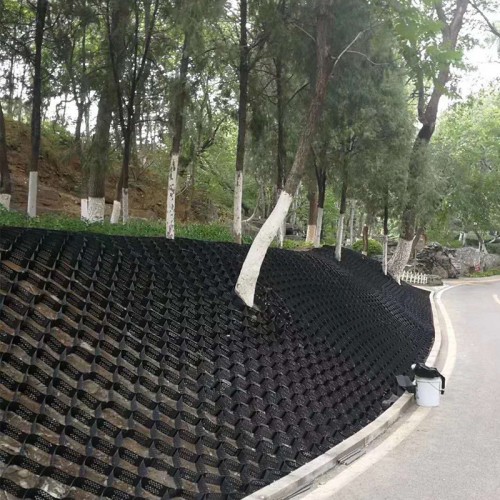

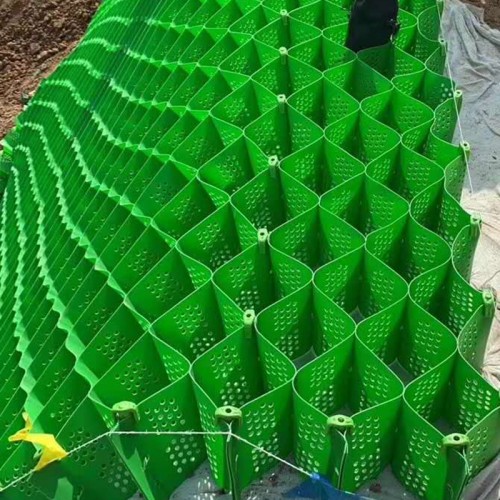

Geocell is a three-dimensional mesh compartment structure geocell formed by reinforced HDPE sheet material, which is welded with high strength.

It has the ability to expand and contract freely, and can be transported in a retractable form, and can be tensioned into a mesh during construction and filled with loose materials such as soil, gravel and concrete to form a structural body with strong lateral restraint and large stiffness.

View File
Geocells have characteristics such as free expansion and contraction.
It can be shrunk and stacked during transportation, and can be tensioned into a mesh during construction and filled with loose materials such as soil, gravel and concrete to form a structural body with strong lateral restraint and large stiffness.
Geocell has high lateral restraint and anti-slip, anti-deformation, and effectively enhances the bearing capacity of roadbed and disperses the load.
In addition, high-quality geocells are light, wear-resistant, chemically stable, resistant to photo-oxidative aging, acid and alkali, and suitable for different soils and deserts and other soil conditions.

Honeycomb Gravel Stabilizer Driveway Pavers 1420n/10cm China Factory Smooth Textured Perforated Plastic HDPE Geocell for Railway Retaining Wall

Geocell treats half-fill and half-roadbed, roadbed in sandy areas, reinforcement of fill in the back of roadbed, roadbed in permafrost areas, treatment of wet sink roadbed in loess, saline soil and swelling soil.

Technical Sheet

Honeycomb Gravel Stabilizer Driveway Pavers 1420n/10cm China Factory Smooth Textured Perforated Plastic HDPE Geocell for Railway Retaining Wall

Product Type Height (mm) Sheet Thickness(mm) Welding Distance(mm) Peel strength of welding point(N/CM)
Smooth and Not Perforated 50~300 1.0~1.2 330~600 1000N/10CM
Smooth and perforated 50~300 1.0~1.2 330~600 1000N/10CM
Textured and Not Perforated 50~300 1.5~1.7 330~600 1420N/10CM
Textured and Perforated 50~300 1.5~1.7 330~600 1420N/10CM



View File
