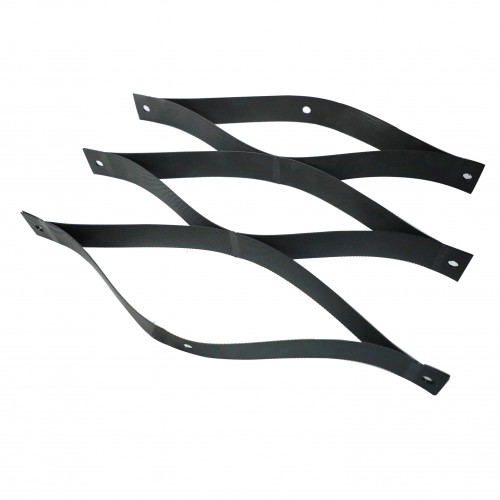

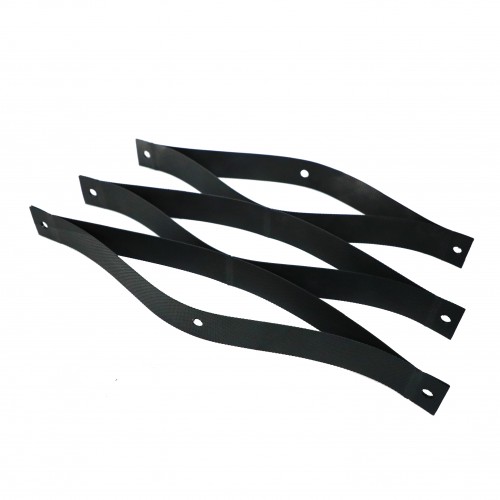

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm

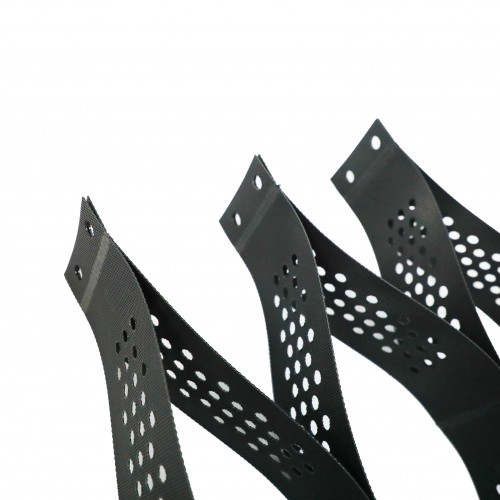

4. Appearance: smooth / textured
|Material Properties||unit||Tested Method|
|Polymer Density||g/cm3||0.935-0.965||ASTM D 1505|
|Enviroment Stress Crack Resistance||Hours||>400||ASTM D 5397|
|Enviroment Stress Crack Resistance||Hours||6000||ASTM D 1693|
|Carbon Black Content||%||1.5%-2.0%||ASTM D 1603|
|Nominal Sheet Thickness Before Texturing||mm||1.27-5%,+10%||ASTM D 5199|
|Nominal Sheet Thickness After Texturing||mm||1.27-5%,+10%||ASTM D 5199|
|Strip Puncture Resistance||N||450||ASTM D 4833|
|Seam Peel Strength||N||1065||1420||2130||2840||EN ISO 13426-1B|
|Norminal Expanded Cell Size(width x length)||mm||320x287,475x508 etc|
|Norminal Expanded Panel Size(width x length)||m||2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44|
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
