HDPE Liner Pond Liner 0.75mm 1.0mm Geomembrane Tank Liner LDPE Waterproof Membrane

Geomembrane Main Features

1.Waterproof and impermeable
2.UV resistance
3.High tearing resistance
4. Puncture-resisting
5.Nontoxic,non-tasteness.Long life:over 100 years underground without sunlight.

Description:

Description:
· HDPE geomembrane uses high quality polyethylene raw resin, the main component is high density polyethylene, plus carbon black, anti-aging, antioxidant and UV-resistance component; all products are based on American GRI standards and ASTM test standards.
· The thickness of the smooth and textured surface is 0.1mm-5.0mm, and the width is 1m-12m. It meets the requirements of solid waste containment (such as landfill liners), mining and water containment applications.

Thickness 0.1mm-5.0mm
Width Within 1-12m
Length 50m-100m/ roll or as required
Color Black, White, Blue, Green
Material HDPE, LDPE, LLDPE
Surface Textured or Smooth
Payment T/T, L/C, D/P D/A, MoneyGram, Credit Card
Certification CE, ISO9001, ISO14001

 Features:
· High mechanical strength: HDPE geomembrane has good mechanical strength and various specifications to meet different requirements.
· Chemical resistance: corrosion resistance as a result widely used in sewage treatment, landfills, etc.
· low permeability: It has excellent puncture resistance and can resist most plant roots.
· Anti-aging performance: It has excellent anti-aging properties, anti-UV, anti-decomposition ability, low temperature resistance and good anti-freezing ability.

View File
Technical Parameter :

                   Spec
Properties
Test method
ASTM
GMS0.5 GMS0.75 GMS1.0 GMS1.25 GMS1.5 GMS2.0 GMS2.5
Thickness D5199 0.5mm 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm
Density (≥  g/cc) D1505 0.940 0.940 0.940 0.940 0.940 0.940 0.940
Tensile Properties
(Each direction) (≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation
D 6693
Type IV


8 kN/m
14kN/m
12%
700%


11 kN/m
20kN/m
12%
700%


15 kN/m
27 kN/m
12%
700%


18 kN/m
33 kN/m
12%
700%


22 kN/m
40 kN/m
12%
700%


29 kN/m
53 kN/m
12%
700%


37kN/m
67kN/m
12%
700%
Tear Resistance (≥) D 1004 64 N 93 N 125 N 156 N 187 N 249 N 311 N
Puncture Resistance (≥) D 4833 160 N 240 N 320 N 400 N 480 N 640 N 800 N
Stress Crack Resistance (≥) D 5397 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr. 500 hr.
Carbon Black Content D 1603 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0%
Carbon Black Dispersion D 5596 Note(1) Note(1) Note(1) Note(1) Note(1) Note(1) Note(1)
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT
- or -
(b)High Pressure OIT


D 3895

D 5885


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.

Production Line
View File

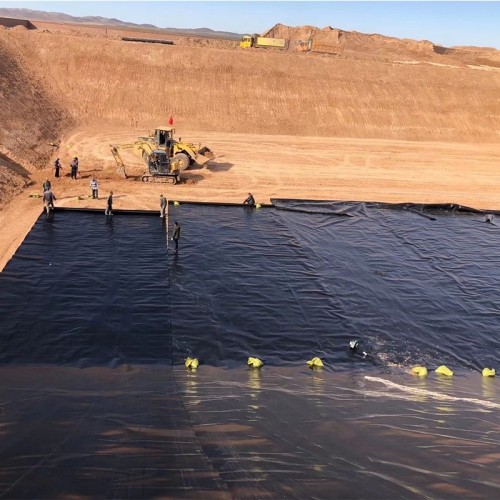

Installation:
·  Do not pull or harden the geomembrane during installationEnsure there are no sharp objects, roots or rocks on the base or side walls.  Use a spade to clean up and get it as smooth as possible.
·  Do not pull too tight, should leave a 1.50% margin for partial sinking and stretching. The slope is laid from top to bottom;
·  The longitudinal joints of two adjacent frames shall not be on a horizontal line and shall be staggered by more than 1 m;
·  The longitudinal joint should be 1.50m or more from the dam foot and the bent foot, and should be set on the plane;
·  When laying the slope, the direction of the film should be basically parallel to the maximum slope line.

Applied Range
· Municipal environmental projects, water conservancy projects
·  Landfill cap, mining heap leach pads
· Pond liner, canal linings, tank linings, raw water treatment reservoirs, retetntion ponds
· Waste water treatment lagoon, secondary containment tank.

View File

Professional geosynthetics manufacturer
 Anhui Zhonglu Engineering Materials Co., Ltd
