Hdpe Plastic Geocell Retaining Walls Geocell Price

HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured

1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured

Description:

Ground Enhancement Honeycomb System Gravel Grid Driveway Gravel Stabilizer Hdpe Geocell
Free samples are available.
Products Description
HDPE paving plastic gravel stabilizer geocell basic details:
Cell depth
50mm ,100mm , 150mm , 200mm , 250mm
Welding space
330mm ~ 1600mm
Thickness
1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell
1.HDPE Paving Plastic Gravel Stabilizer Geocell Introduction:
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .
2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
3.HDPE Paving Plastic Gravel Stabilizer Geocell Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .
4.Technical Parameters:
Material Properties
unit




Tested Method
Cell Depth
mm
75
100
150
200

Polymer Density
g/cm3
0.935-0.965
ASTM D 1505
Enviroment Stress Crack Resistance
Hours
>400
ASTM D 5397
Enviroment Stress Crack Resistance
Hours
6000
ASTM D 1693
Carbon Black Content
%
1.5%-2.0%
ASTM D 1603
Nominal Sheet Thickness Before Texturing
mm
1.27-5%,+10%
ASTM D 5199
Nominal Sheet Thickness After Texturing
mm
1.27-5%,+10%
ASTM D 5199
Strip Puncture Resistance
N
450
ASTM D 4833
Seam Peel Strength
N
1065
1420
2130
2840
EN ISO 13426-1B
Seam Efficiency
%
GRI100
GRI-GS13
Norminal Expanded Cell Size(width x length)
mm
320x287,475x508 etc

Norminal Expanded Panel Size(width x length)
m
2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44

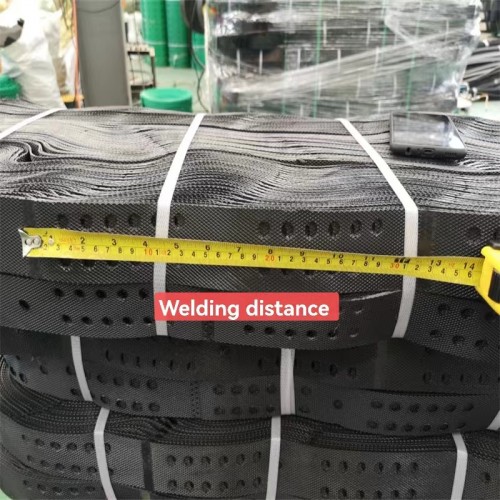

5.HDPE paving plastic gravel stabilizer geocell Production &Packing:.
6.Applications:HDPE paving plastic gravel stabilizer geocell

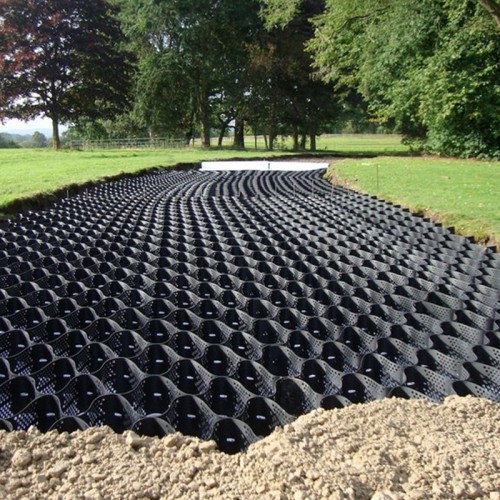

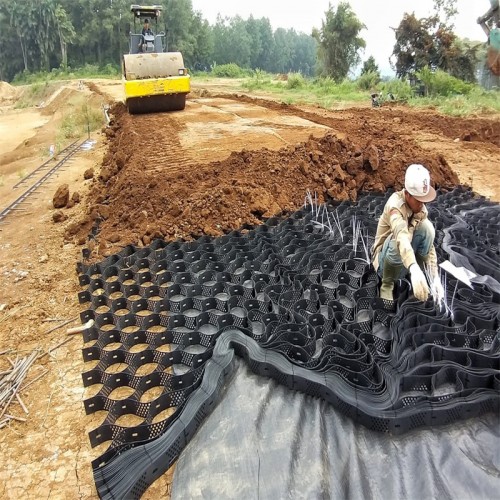

1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,
good performance and greatly reduce the project cost .
8.Good quality and good services:
(1)Service:
A. OEM/ODM orders are warmly welcome
B. All of our products have proceeded testing before shipment and we guaranteed the good quality .

(2) Quality Control:
We have established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing .
Not only is stringent internal quality control carried out at zhonglu , but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States
9.HDPE Paving Plastic Gravel Stabilizer Geocell Company Information
Zhonglu is a professional geosynthetic products manufacturing company with registered capital more than $ 3 million , covers an area of 100,000 square meters . The main products are HDPE / LDPE Geomembrane , Plastic Grass Grids , Woven/nonwoven Geotextile , Drainage Board , Composite Membrane and Textile , Plastic netting , 3D Planting Geomat , and other geosynthetic products . Zhonglu Company has altogether 26 production liners including HDPE/LDPE Geomembrane liners , Plastic Grass Grids liners , Nonwoven Geotextile liners , Woven Geotextile liners , Drainage Board liners , PlasticNetting liners from Germany , and variety testing machines . We are specialized in providing professional geosynthetics solutions for Road, Highway , Railway , Airport , Tunnel , Mine Supporting and Protecting , Hydro , Reinforced Steep Slopes , Reinforced Retaining Wall , Reinforced Embankments , Landfill , Containment , water conservancy facilities , soft foundation treatment and other related projects . Our target is to supply professional products with the most reasonable prices to our customers around all the world , expect to build long term relationship with you . HDPE paving plastic gravel stabilizer geocell Anhui Zhonglu Engineering Materials Co., Ltd ----A professional geosynthetic products manufacturer in China Mary Bao Email:Mary@zhongloo.com Phone/wechat/whatsapp: 86-18130028453
