High Strength Biaxial /Fiberglass Plastic Geogrid For Soil Reinforcement Polypropylene Geogrid

1.It is manufactured to ISO 9001 quality standards.

2.It has excellent UV and oxidation resistance and performance is not affected by creep.

3.It is easily milled and recycled and environmentally friendly.

4.It is suitable for use in paving fabric applications.

5.It has a low elongation,extend the life of roads, runways and parking lots and lower maintenance costs.

Description:

Introduction:

The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.

Glass Fiber Geogrid is composed of a reticular structural material made of glass fiber filament with modified bitumen coating. It withstands high and low temperatures and can resist corrosion. FiberGlass geogrid is a stress relief asphalt reinforcement grid developed specifically for ashpalt overlays. Fiber Glass geogrid can not only decrease the cost of construction but also longer the service life of the pavement and road.

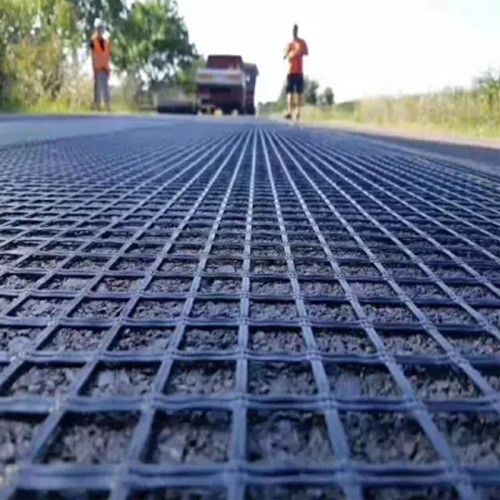

Glass Fiber Geogrid in a pavement system can distribute traffic loading of vehicle and prevent reflective cracking due to temperature difference to extend service life of pavement.


Data Sheet

Property Test method TGSB 30-30 TGSB 40-40 TGSB 50-50 TGSB 60-60 TGSB 70-70 TGSB 80-80 TGSB 90-90 TGSB 100-100 TGSB 120-120 TGSB 130-130
Ultimate tensile strength KN/m MD EN ISO 10139 30 40 50 60 70 80 90 100 120 130
CD 30 40 50 60 70 80 90 100 120 130
Elongation at maximum load % MD 3 3 3 3 3 3 3 3 3 3
CD 3 3 3 3 3 3 3 3 3 3
Approximate mesh size mm   12-50
Roll width m     1-6
Roll length m     50-200

Features:

The product has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance, long life and so on. In engineering fields such as slope protection, road and bridge pavement enhancement treatment, it can strengthen and reinforce the pavement, prevent pavement rutting fatigue cracks, hot-cold expansion cracks and reflection cracks below, and can disperse the bearing stress of the pavement, prolong the service life of the pavement, high Low tensile strength, low elongation, no long-term creep, good physical and chemical stability, good thermal stability, anti-fatigue cracking, high temperature rutting resistance, low temperature shrinkage crack resistance, delay and reduce reflection cracks.
