Polyester Retaining Wall Biaxial Geogrid Roll For Stabilization

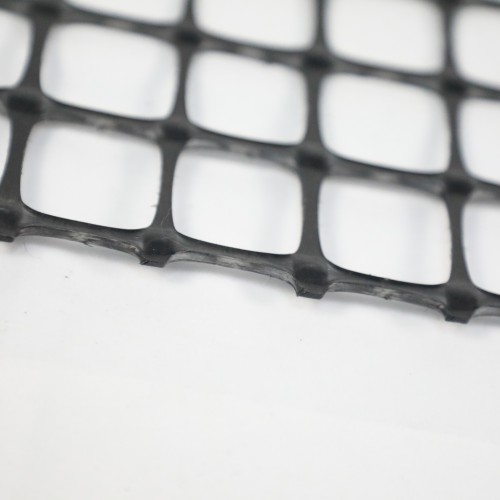

PP Biaxial Geogrid

The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised
geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies
mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil.
The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction
cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for

optimum matching with project fill.



Index for PPBG30-30	Test method	Units	MD values	TD values
Polymer	-	-	PP	-
Minimum carbon black	ASTM D4218	%	2	-
Tensile strength @ 2% Strain	ASTM D6637	kN/m	10.5	10.5
Tensile strength @ 5% Strain	ASTM D6637	kN/m	21	21
Ultimate Tensile Strength	ASTM D6637	kN/m	30	30
Strain @ Ultimate Strength	ASTM D6637	%	13	13
Structural Integrity
Junction Efficiency	GRI GG2	%	90	90
Overall Flexural Rigidity	ASTM D1388	mg-cm	3,930,000
Aperture Stability	COE Method	mm-N/deg	1432
Dimension
Aperture Dimensions	-	mm	36	34
Minimum Rib Thickness	ASTM D1777	mm	2.1	1.8
Roll width		m	3.95
Roll length		m	50

Soft foundation reinforcing for highway, railway, Slop protecting projects, landfill side

Function:

1. Improve the bearing capacity of foundation;

2. Preventing cracking and subsiding;

3. Convenient to construct, reducing cost and maintaining expense
