Smooth With Factory Cheap Price Waterproof Material Geomembranefor River Levee/Tarps/Tailing Reservoir/Lake Plastic Liner

Features:
  • Excellent chemical resistance.
  • Outstanding stress crack capacity.
  • Lowest permeability.
  • Excellent UV resistance.
  • Stable low temperature embrittlement resistance.
  • Complete width and thickness specifications.
  • Cost effective.
  • Proven performance.
  • Fast deployment.
  • Easy transportation.
  • Meet or exceed all aspects of GRI GM13.

Description:

Introduction

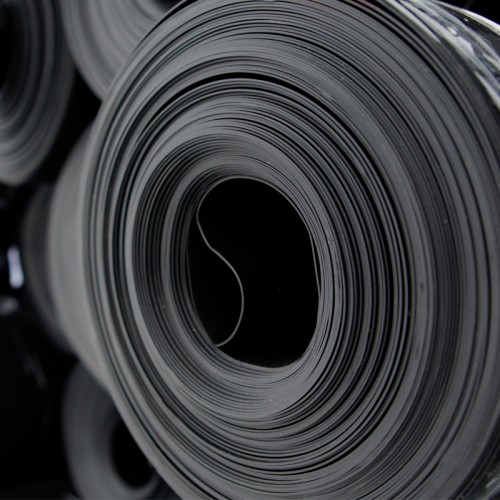

High density polyethylene(HDPE) smooth geomembrane, made of virgin resin by special production, has even and smooth surface on both sides. It is especially designed for flexible geomembrane.
Specification
Thickness ranges from 0.2mm to 2.0mm, width from 1m to 8m. The roll length can be made according to design or customer request.
Property
HDPE smooth geomembrane has excellent chemical and mechanical property, anti-crack property, dimensional stability and anti-aging property, furthermore it can be exposed for anti-UV property.

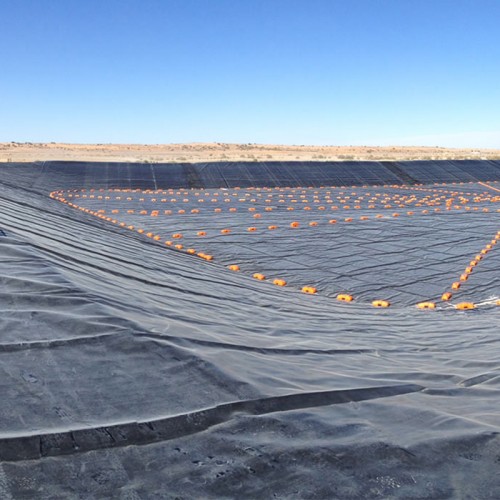

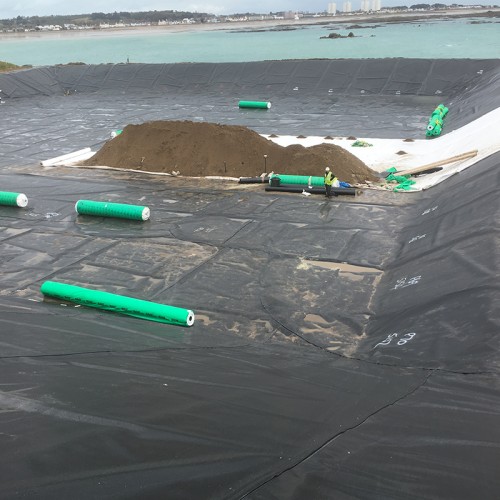

Application
Municipal environmental, anti seepage in landscaping and municipal, metallurgy area, anti-corrosion, transportation infrastructure, agriculture reservoir waterproofing project, fisheries aquaculture. Other facilities waterproofing, anti erosion, anti seepage, reinforcement and seepage water collecting, preparation of temporary tank and special structure.View File

Technical Parameter :

                   Spec
Properties
Test method
ASTM
GMS0.5 GMS0.75 GMS1.0 GMS1.25 GMS1.5 GMS2.0 GMS2.5
Thickness D5199 0.5mm 0.75mm 1.00mm 1.25mm 1.50mm 2.00mm 2.50mm
Density (≥  g/cc) D1505 0.940 0.940 0.940 0.940 0.940 0.940 0.940
Tensile Properties
(Each direction) (≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation
D 6693
Type IV


8 kN/m
14kN/m
12%
700%


11 kN/m
20kN/m
12%
700%


15 kN/m
27 kN/m
12%
700%


18 kN/m
33 kN/m
12%
700%


22 kN/m
40 kN/m
12%
700%


29 kN/m
53 kN/m
12%
700%


37kN/m
67kN/m
12%
700%
Tear Resistance (≥) D 1004 64 N 93 N 125 N 156 N 187 N 249 N 311 N
Puncture Resistance (≥) D 4833 160 N 240 N 320 N 400 N 480 N 640 N 800 N
Stress Crack Resistance (≥) D 5397 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr.
Carbon Black Content D 1603 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0% 2.0-3.0%
Carbon Black Dispersion D 5596 Note(1) Note(1) Note(1) Note(1) Note(1) Note(1) Note(1)
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT
- or -
(b)High Pressure OIT


D 3895

D 5885


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.


100 min.

400 min.
