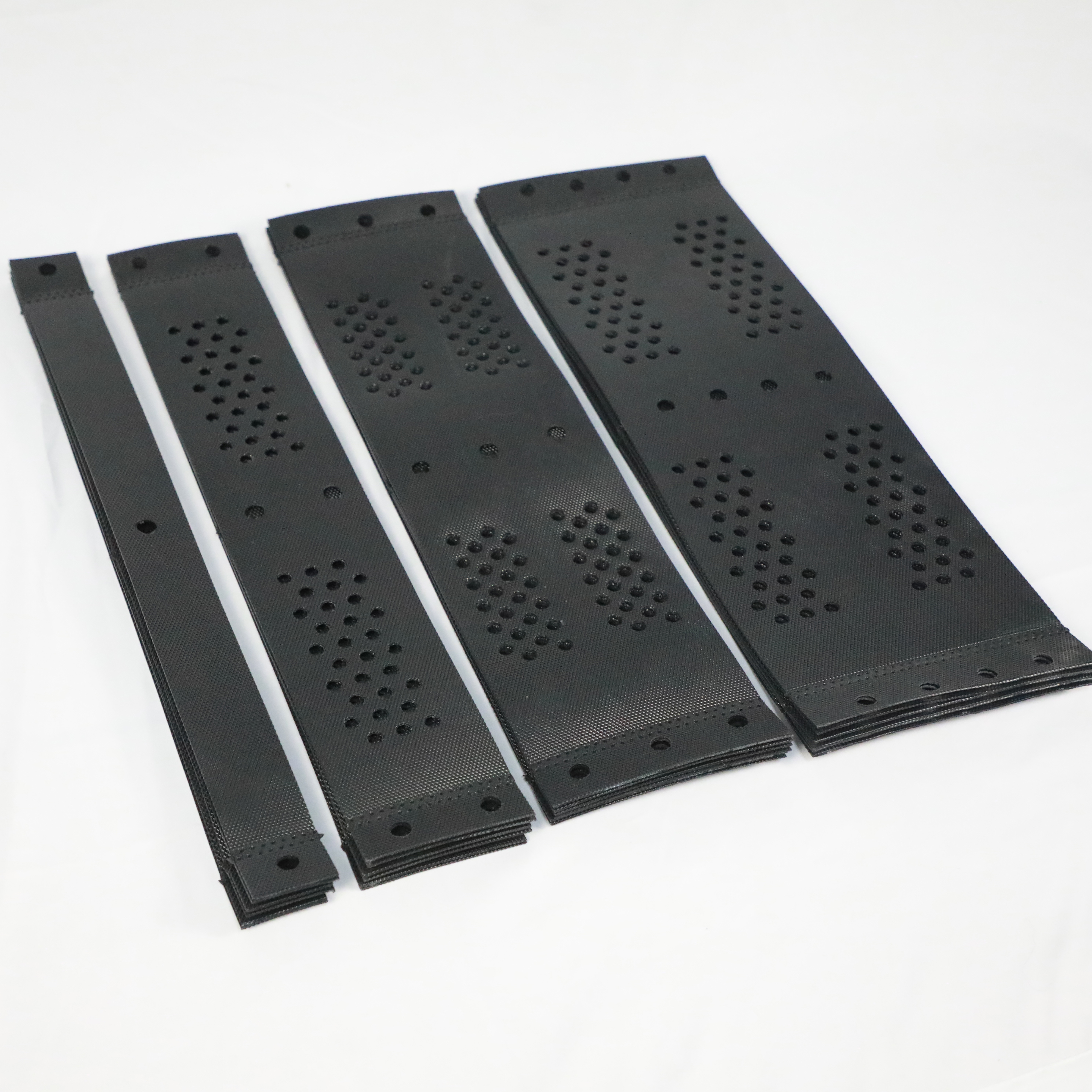

Textured / Smooth HDPE Geocell For Retaining Wall
- Benefits:
- US $500 coupons
HDPE
$0.01/square meterMin. Order : 1 square meter
Lead Time:
| Quantity(square meters) | 1 - 1 | 2 - 1000 | 1001 - 10000 | > 10000 |
| Est. Time(days) | 7 | 9 | 11 | To Be Negotiated |
Description:
Quick Details
- Type:
-
Geocells
- Warranty:
-
5 years, More than 5 years
- After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
- Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
- Application:
-
Earthwork Apllication, Building, Road Basement
- Design Style:
-
Modern
- Place of Origin:
-
Anhui, China
- Brand Name:
-
zhongloo
- Model Number:
-
ZL-TGGS
- Product name:
-
geocell Geo cell enhancement cellular system gravel grid driveway
- Material:
-
HDPE PP
- Color:
-
Black/Yellow/Green/White
- THICKNESS:
-
1.0-1.7mm
- Height:
-
50mm~250mm
- Keyword:
-
Soil Stabilization Geocell Grid
- Surface:
-
Textured Smooth
- WELDING DISTANCE:
-
330mm-1000mm
Supply Ability
- Supply Ability
- 60000 Square Meter/Square Meters per Day

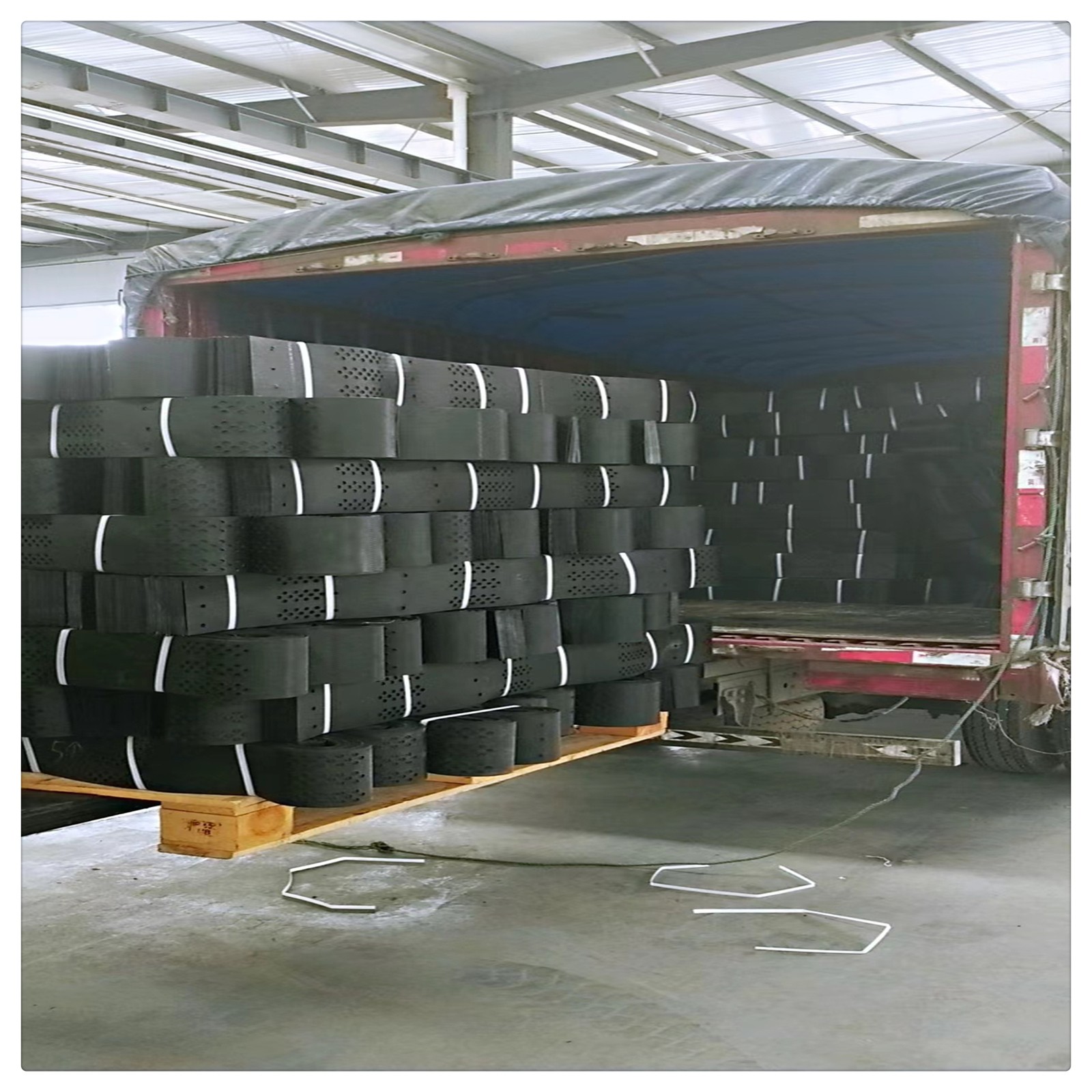

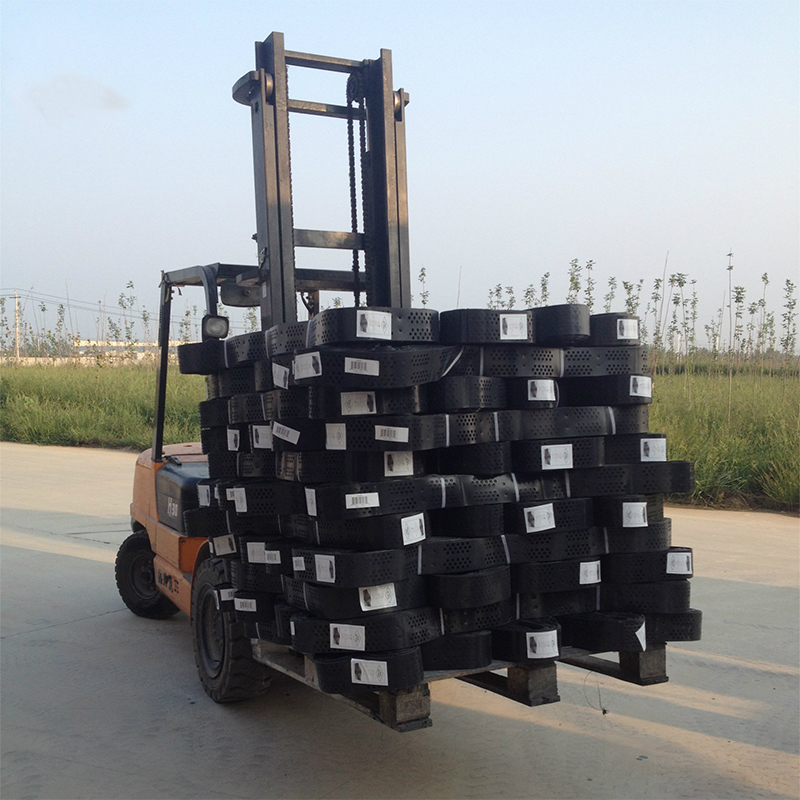

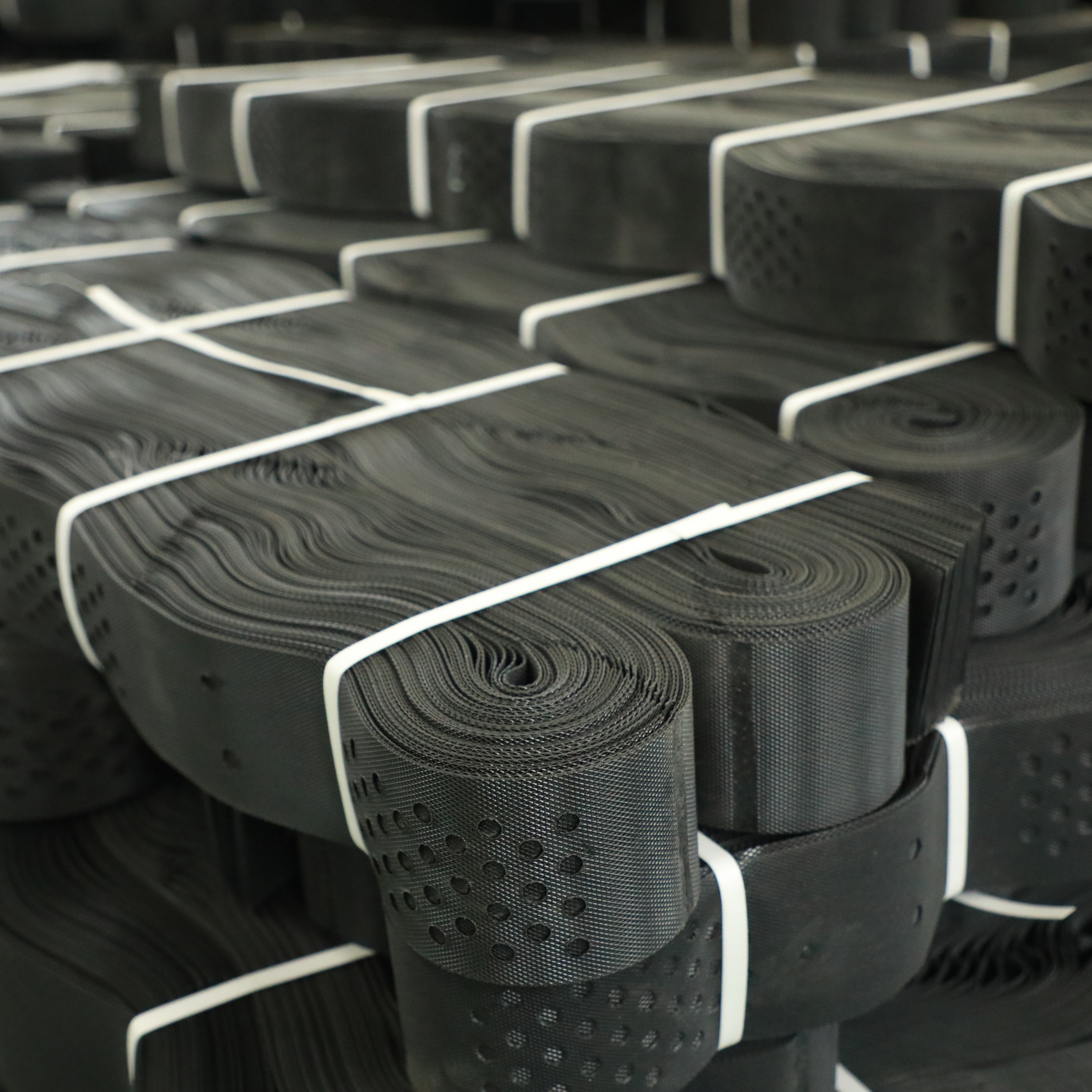

Packaging & Delivery
- Packaging Details Factory low price driveway road slope protection HDPE paving plastic gravel stabilizer geocell manufacturer for sale
- Plastic woven bags for plastic HDPE geocell or according to customer's requirements
- Port qingdao port ; shanghai port; ningbo port or According to customers' requirments
- Picture Example:
-
- Lead Time:
-
Quantity(square meters) 1 - 1 2 - 1000 1001 - 10000 >10000 Est. Time(days) 7 9 11 To be negotiated
Textured / smooth HDPE geocell for retaining wall
Free samples are available.
Products Description
HDPE paving plastic gravel stabilizer geocell basic details:
|
Cell depth
|
50mm ,100mm , 150mm , 200mm , 250mm
|
|
Welding space
|
330mm ~ 1600mm
|
|
Thickness
|
1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell |

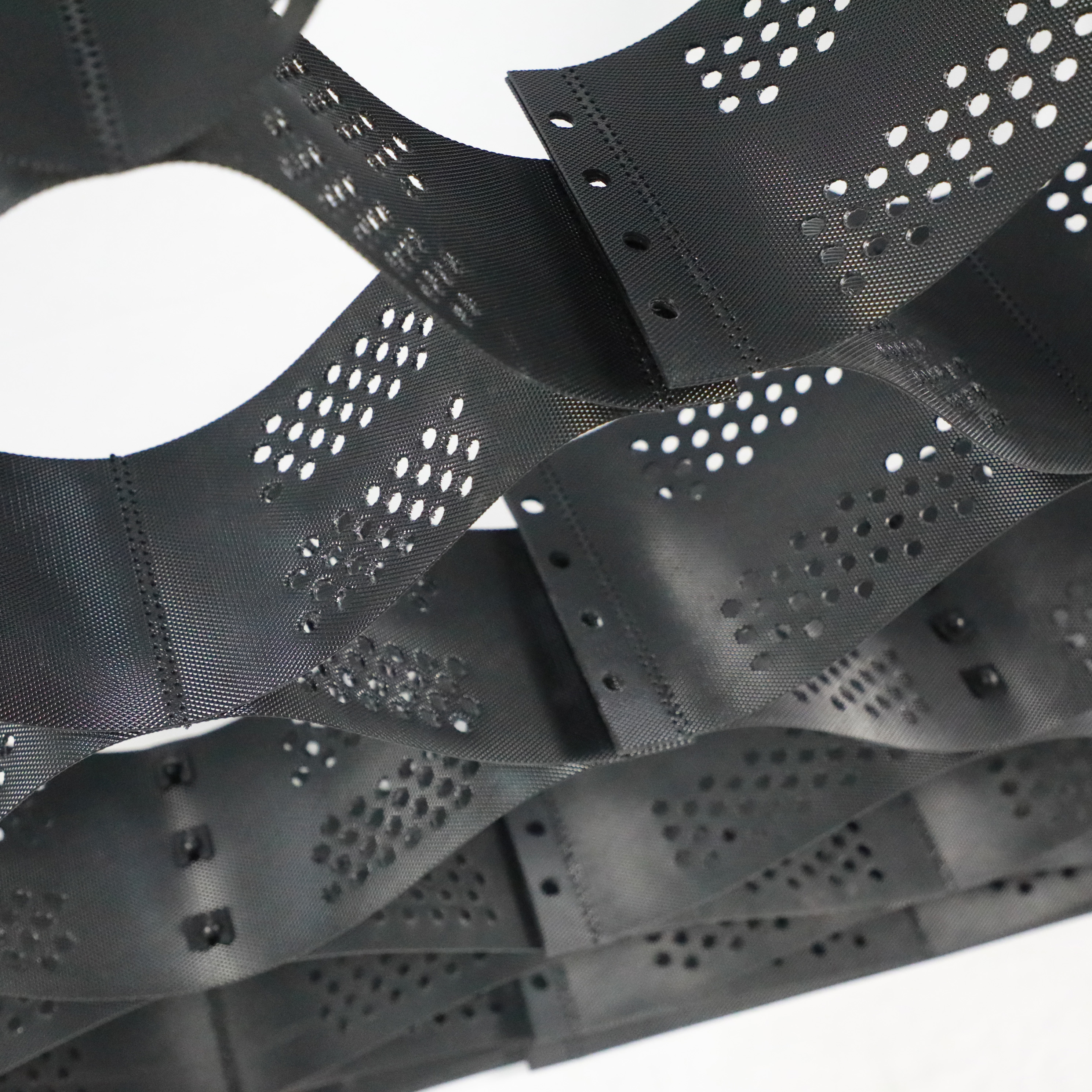

1.HDPE Paving Plastic Gravel Stabilizer Geocell Introduction:

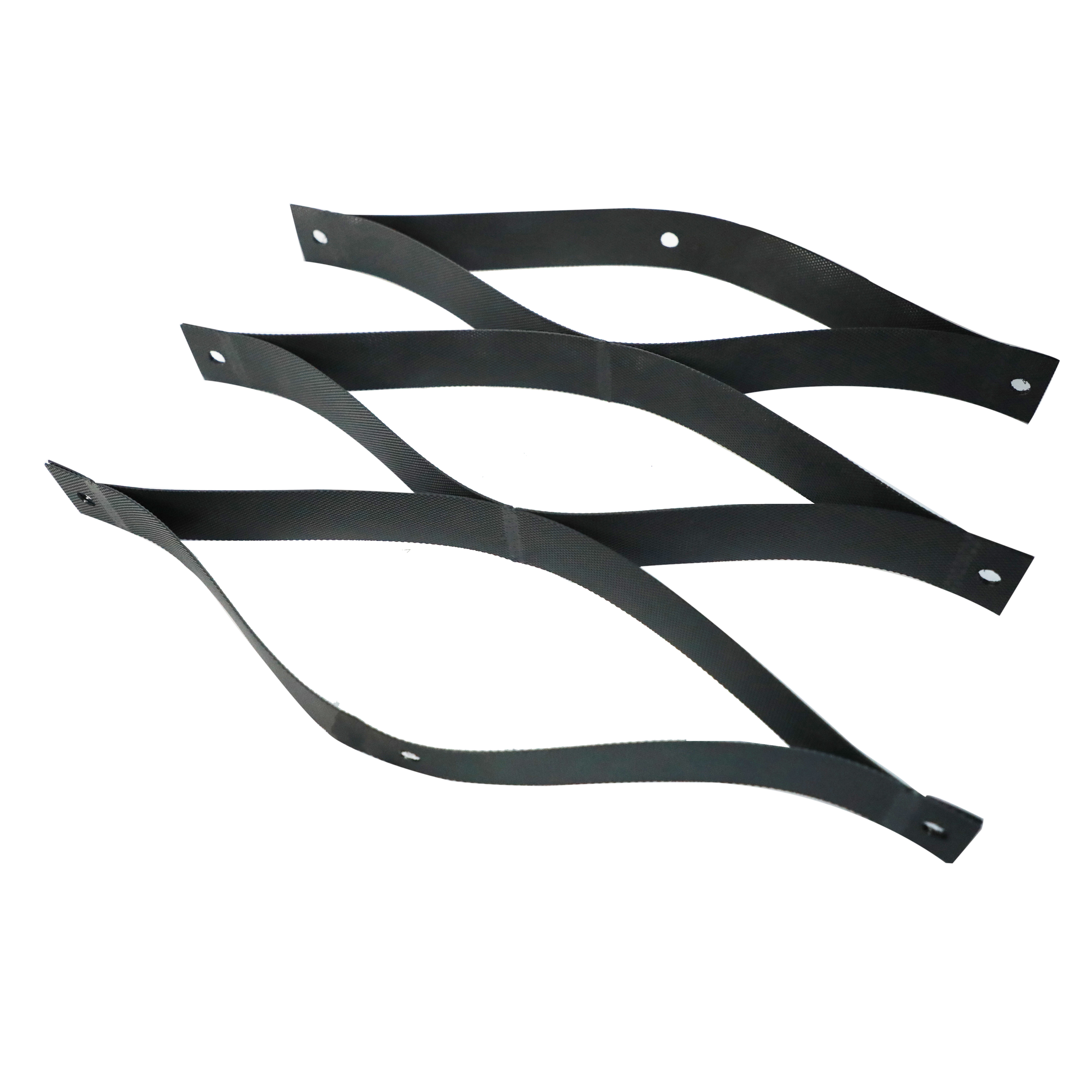

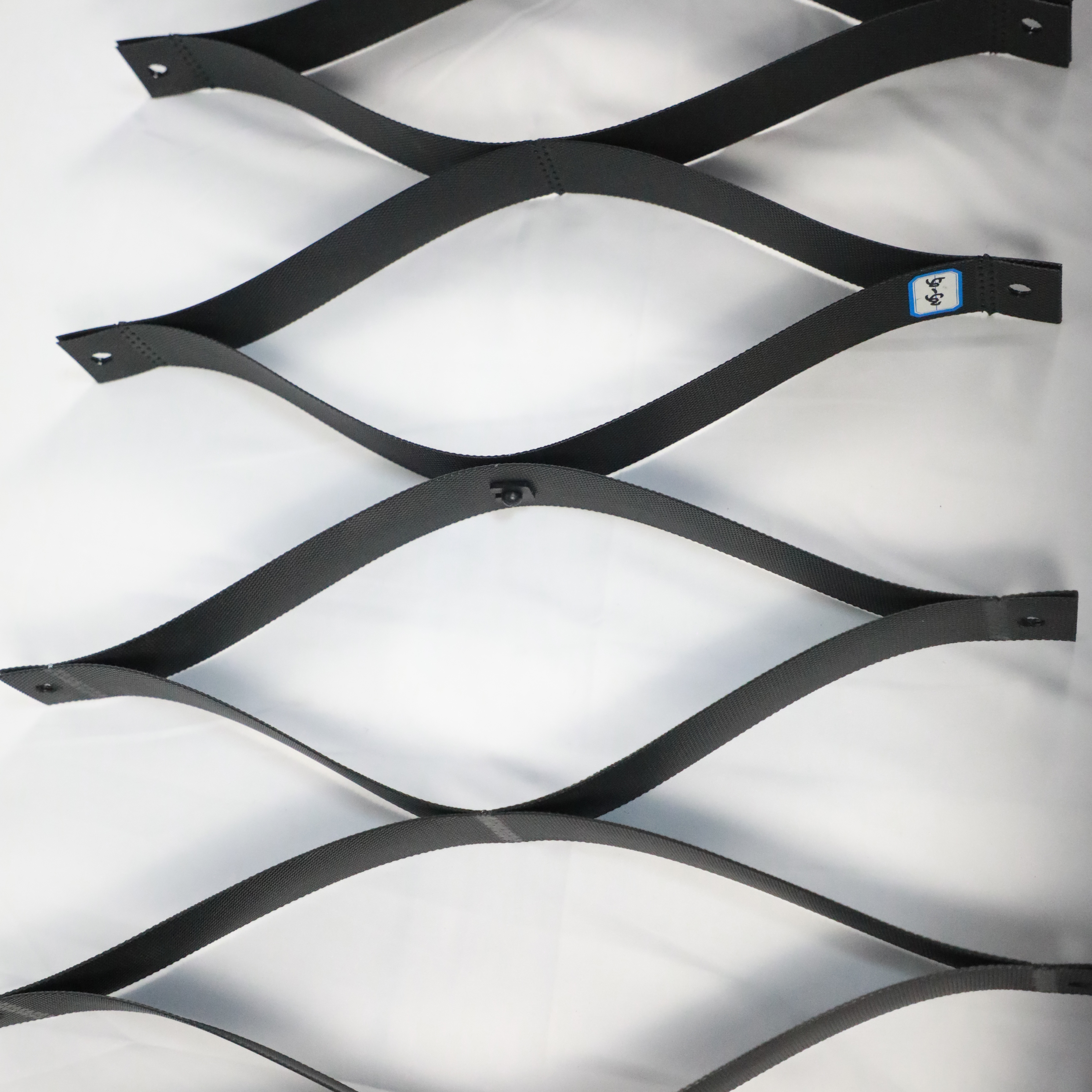

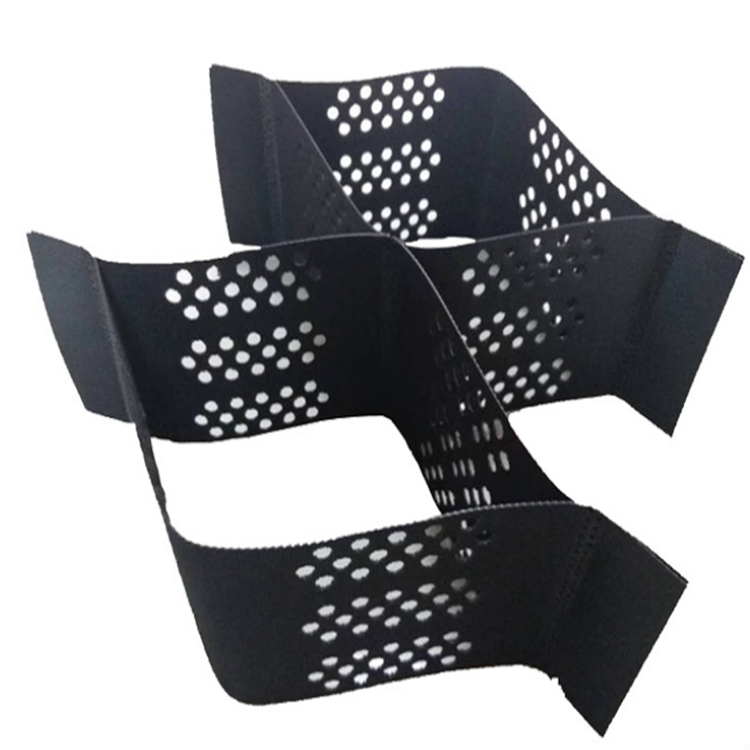

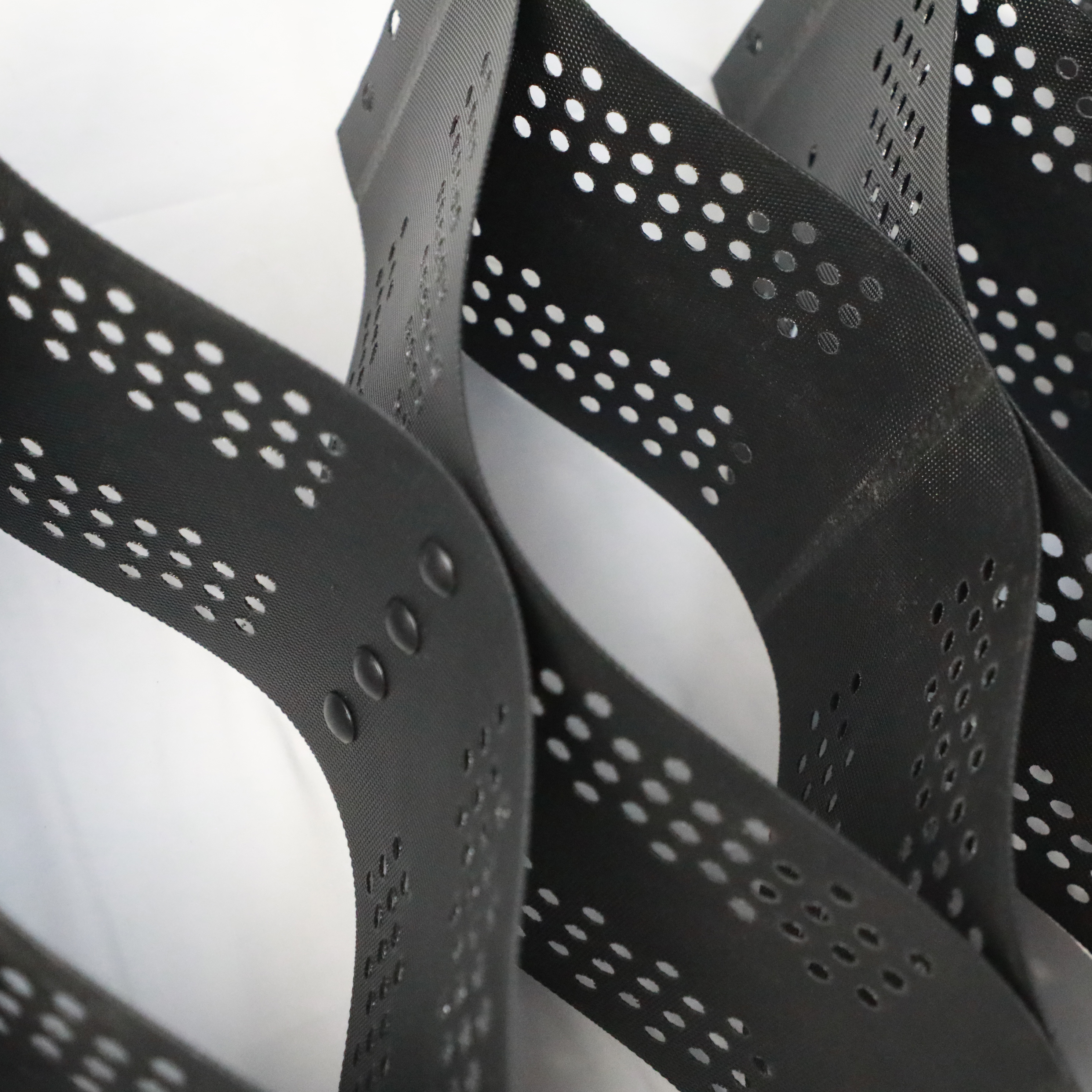

Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .
2.HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
3.HDPE Paving Plastic Gravel Stabilizer Geocell Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .
4.Technical Parameters:
|
Material Properties
|
unit
|
|
|
|
|
Tested Method
|
||
|
Cell Depth
|
mm
|
75
|
100
|
150
|
200
|
|
||
|
Polymer Density
|
g/cm3
|
0.935-0.965
|
ASTM D 1505
|
|||||
|
Enviroment Stress Crack Resistance
|
Hours
|
>400
|
ASTM D 5397
|
|||||
|
Enviroment Stress Crack Resistance
|
Hours
|
6000
|
ASTM D 1693
|
|||||
|
Carbon Black Content
|
%
|
1.5%-2.0%
|
ASTM D 1603
|
|||||
|
Nominal Sheet Thickness Before Texturing
|
mm
|
1.27-5%,+10%
|
ASTM D 5199
|
|||||
|
Nominal Sheet Thickness After Texturing
|
mm
|
1.27-5%,+10%
|
ASTM D 5199
|
|||||
|
Strip Puncture Resistance
|
N
|
450
|
ASTM D 4833
|
|||||
|
Seam Peel Strength
|
N
|
1065
|
1420
|
2130
|
2840
|
EN ISO 13426-1B
|
||
|
Seam Efficiency
|
%
|
GRI100
|
GRI-GS13
|
|||||
|
Norminal Expanded Cell Size(width x length)
|
mm
|
320x287,475x508 etc
|
|
|||||
|
Norminal Expanded Panel Size(width x length)
|
m
|
2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44
|
|
|||||

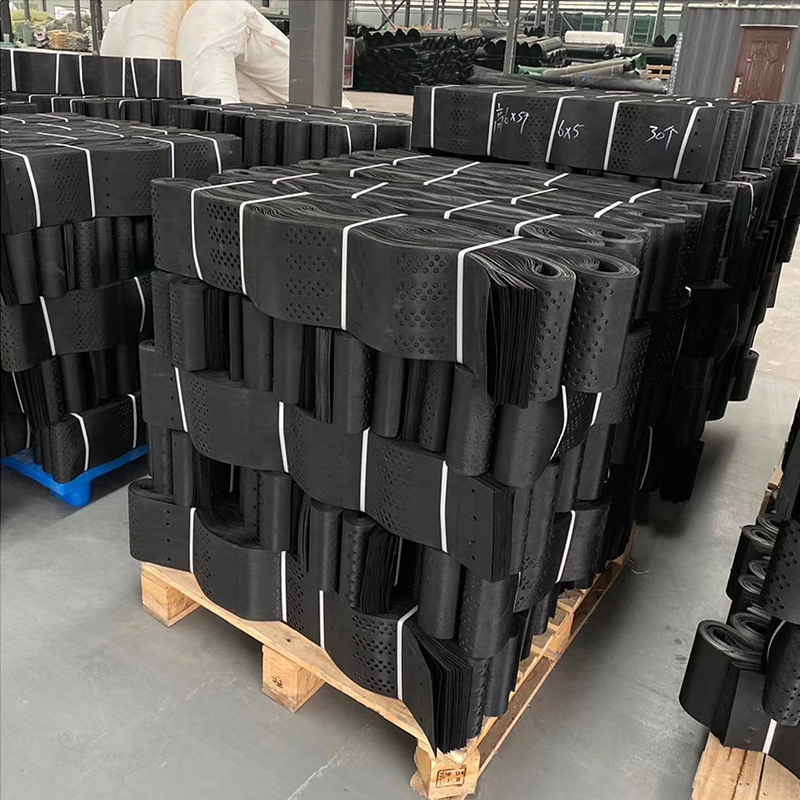

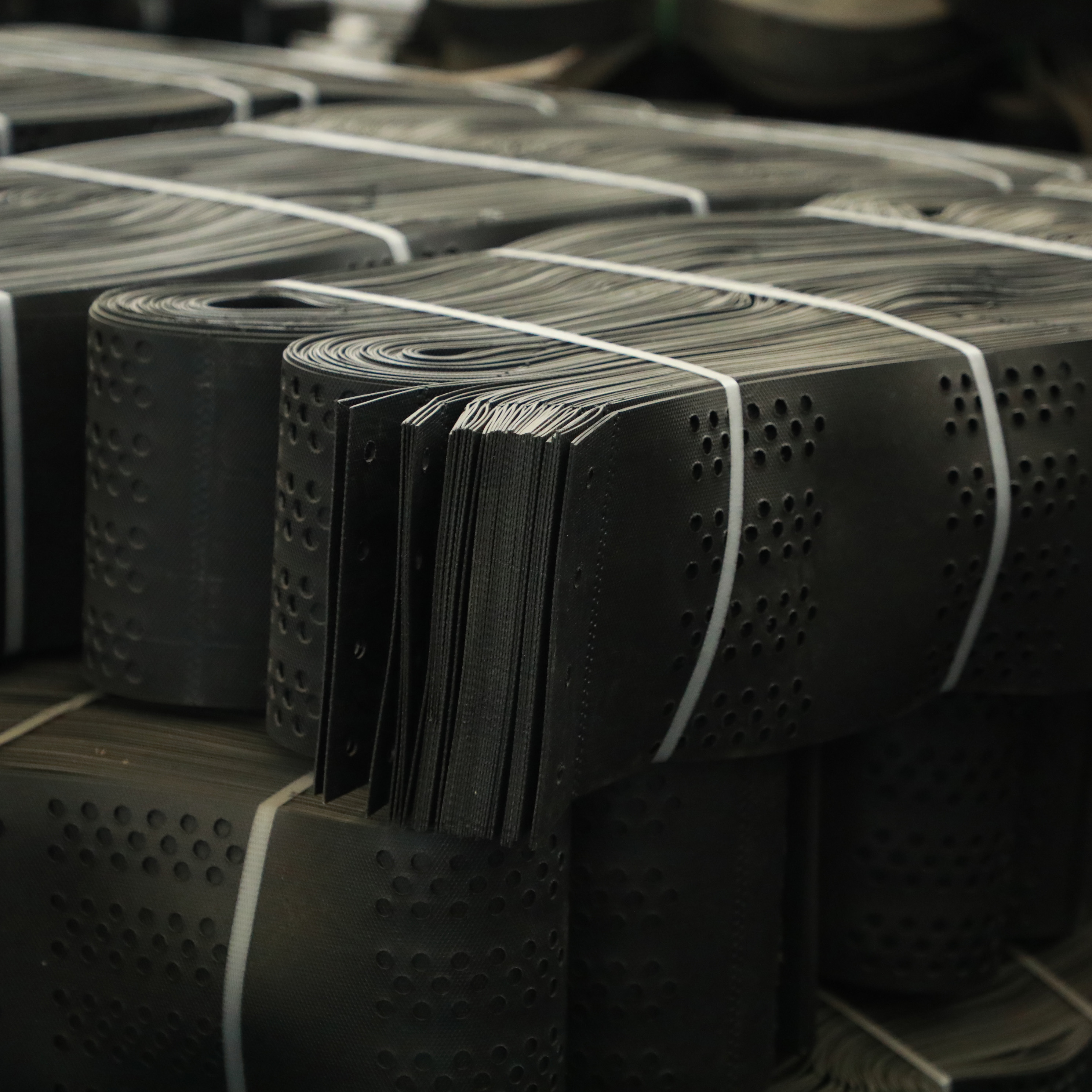

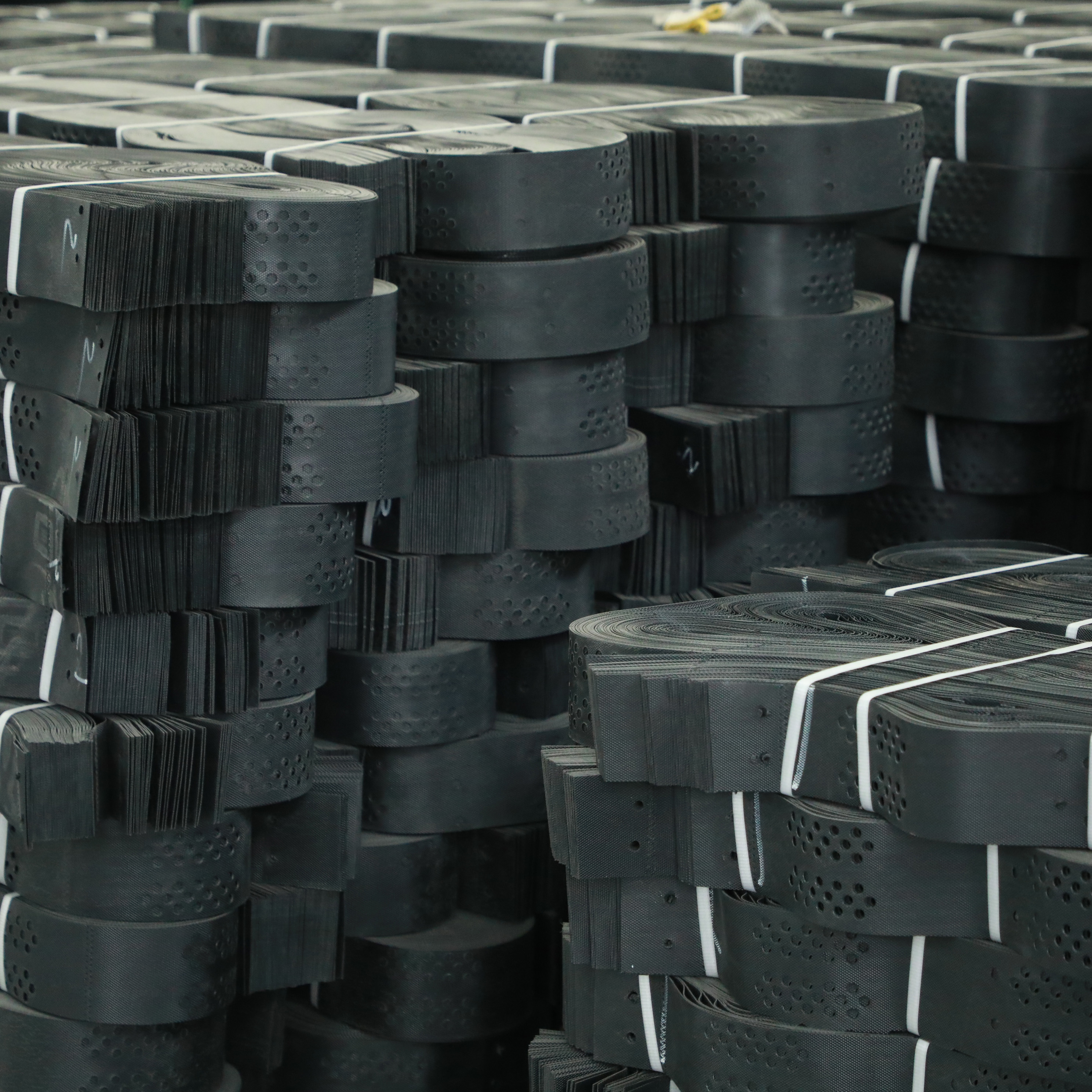

5.HDPE paving plastic gravel stabilizer geocell Production &Packing:.

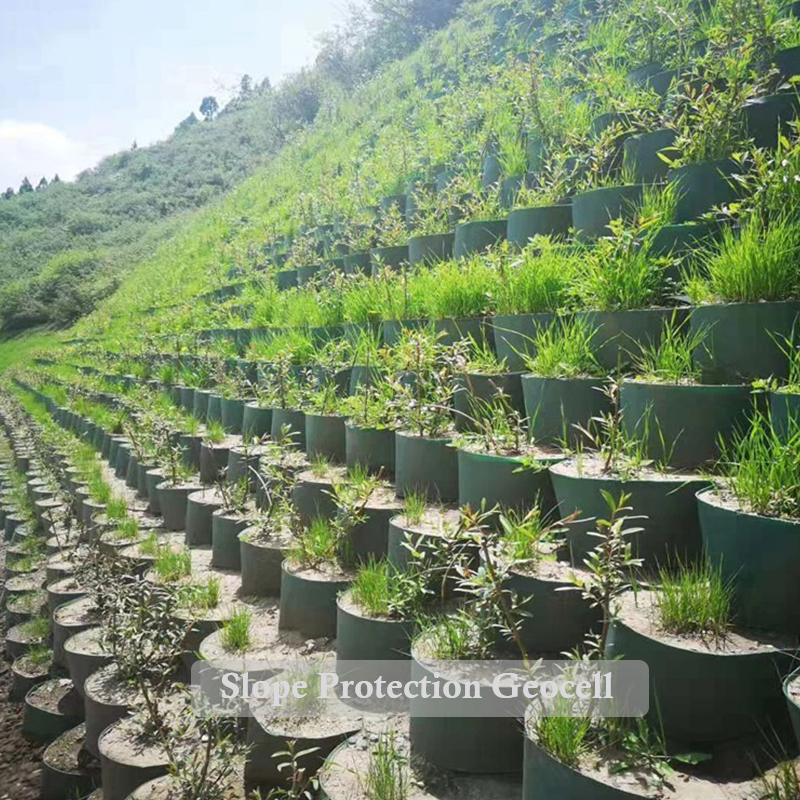

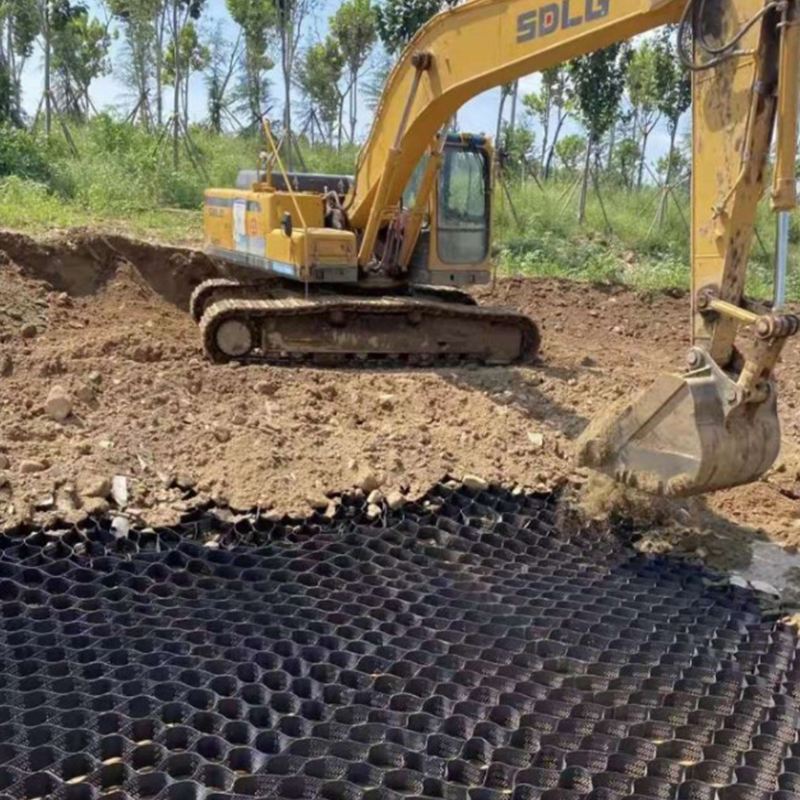

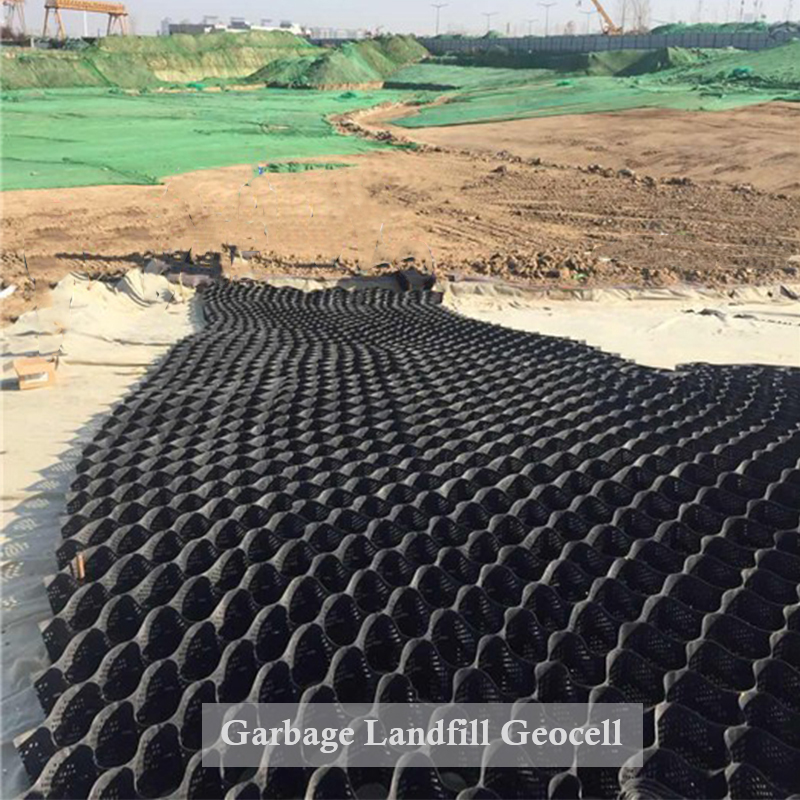

6.Applications:HDPE paving plastic gravel stabilizer geocell

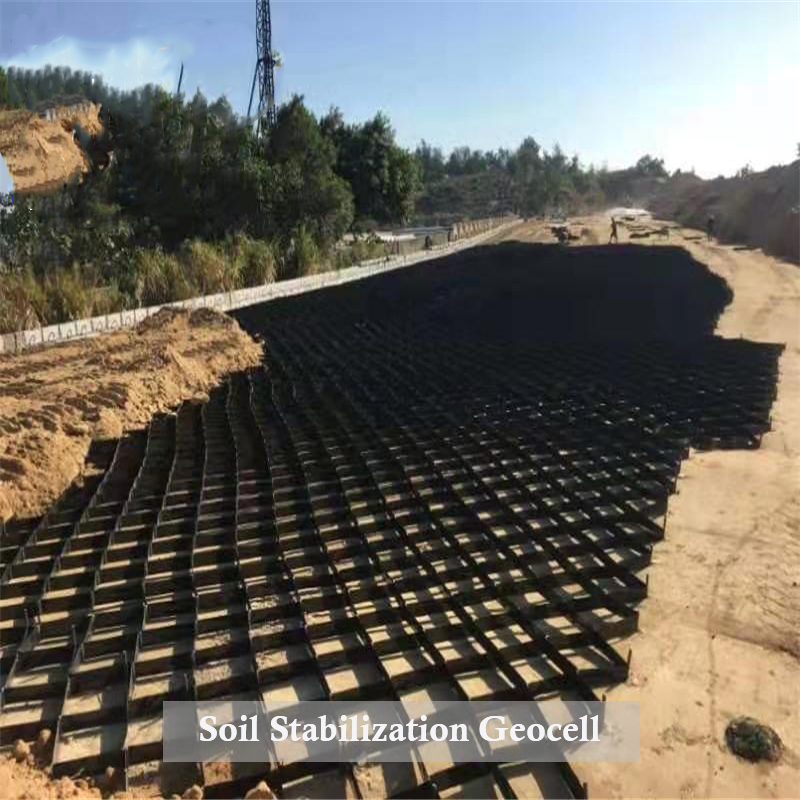

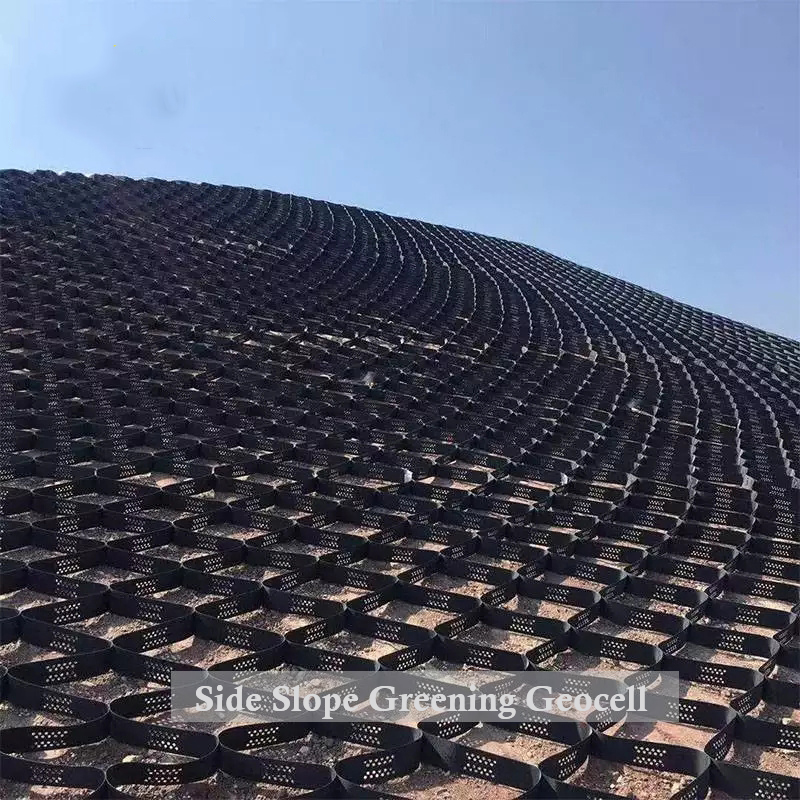

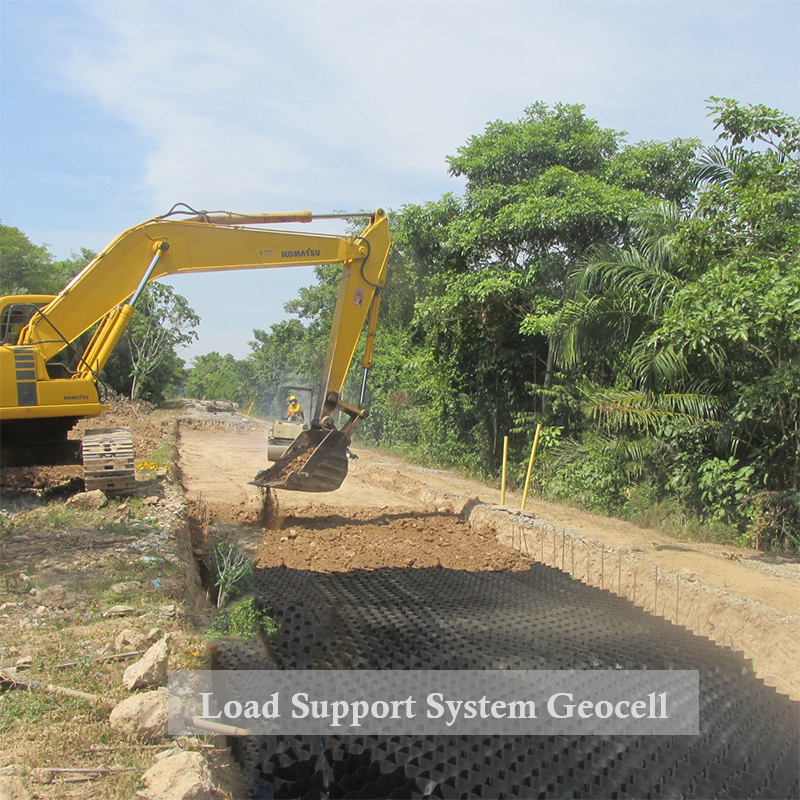

1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,
good performance and greatly reduce the project cost .
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed ,
good performance and greatly reduce the project cost .

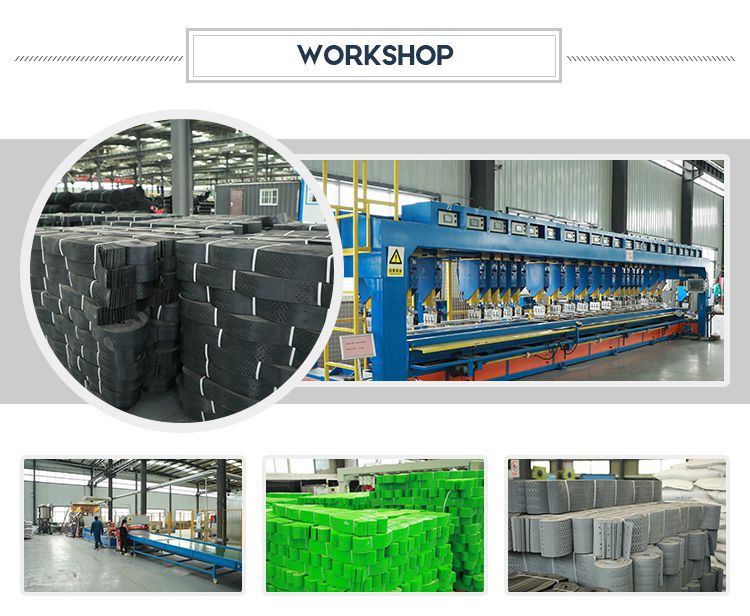

7.HDPE Paving Plastic Gravel Stabilizer Geocell Production:
